PIER 9 CNC WORKHOLDING CLASS

Pier 9 CNC Workholding Class
PIER 9 CNC WORKHOLDING CLASS

PIER 9 CNC WORKHOLDING CLASS

5 Lessons

29 Enrolled

Intermediate Level

This class introduces intermediate CAM users to Workholding at the Pier 9 CNC Workshop for the Haas Mill, DMS 5-axis Router, and Matsuura 5-axis Mill. You will learn how to set up your CAM files in Fusion 360 HSM using custom templates that include precise models of the inside of each machine. Then, you will learn how to set up your vise, load your stock, and set your Work Coordinate System to prepare for machining. This modular workholding system will provide you with a more efficient, effective, and flexible way to machine even the most complex five-axis part.

Class Author:p9shopstaff

Julie Kumar is the CNC Lead at Autodesk's Pier 9. She guides new CNC users through a unique training program called the CNC Learning Path, in which new users are introduced to CNC concepts, CAM programming, and CNC machining through a series of classes, skill checks, and hands-on exercises. She also teaches machine operation for cutting-edge CNC equipment, including the Haas Mill, DMS 5-axis router, and Matsuura 5-axis Mill. Her background is in sculpture and installation art, so she brings a unique, interdisciplinary approach to the world of programming and subtractive manufacturing.

Class Teacher Assistant:mkoehle

Lessons

Lesson 1: Introduction to Workholding at the Pier 9 CNC Workshop

This class will introduce you to the Lang workholding system at Pier 9. You will learn how to set up your CAM files in Fusion 360 using a workholding template, and then how to set up the corresponding vise system on the DMS, Haas Mill, or Matsuura.

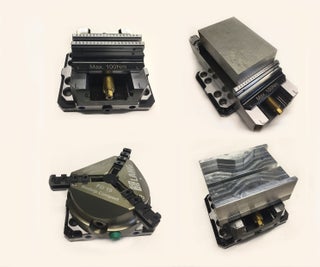

Lesson 2: Introduction to the Lang Vise System

The Lang vise system is modular, repeatable, and flexible. Learn when to use the four Lang vise types in the workshop and how to set them up in the machines.

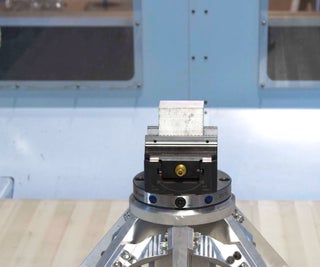

Lesson 3: DMS Workholding Templates

The DMS stand allows you to make complex, 5-axis parts with a single Lang vise. Learn how to set up your CAM file in Fusion and prepare the inside of the DMS.

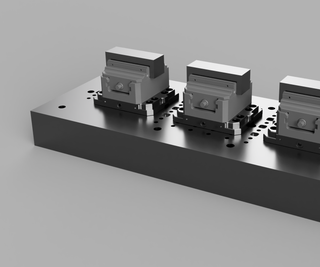

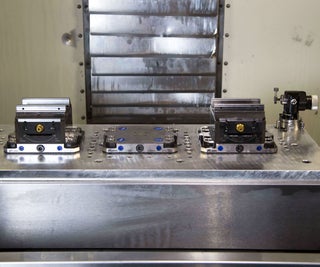

Lesson 4: Haas Mill Workholding Templates

The Haas Mill workholding system allows up to three vises on the machine at once. Learn how to set up your CAM file in Fusion, and prepare the inside of the Haas Mill for a variety of projects.

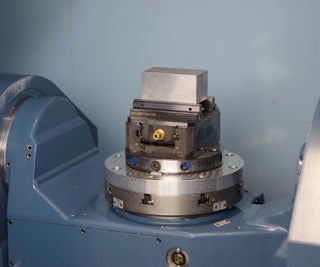

Lesson 5: Matsuura Workholding Templates

The Matsuura is set up for a single Lang vise. Learn how to set up your CAM file in Fusion and prepare the inside of the Matsuura.

Now that you have the skills, what are you waiting for?
Get out there and make something!
