Create a NOR Gate!

Step 2: The Schematic

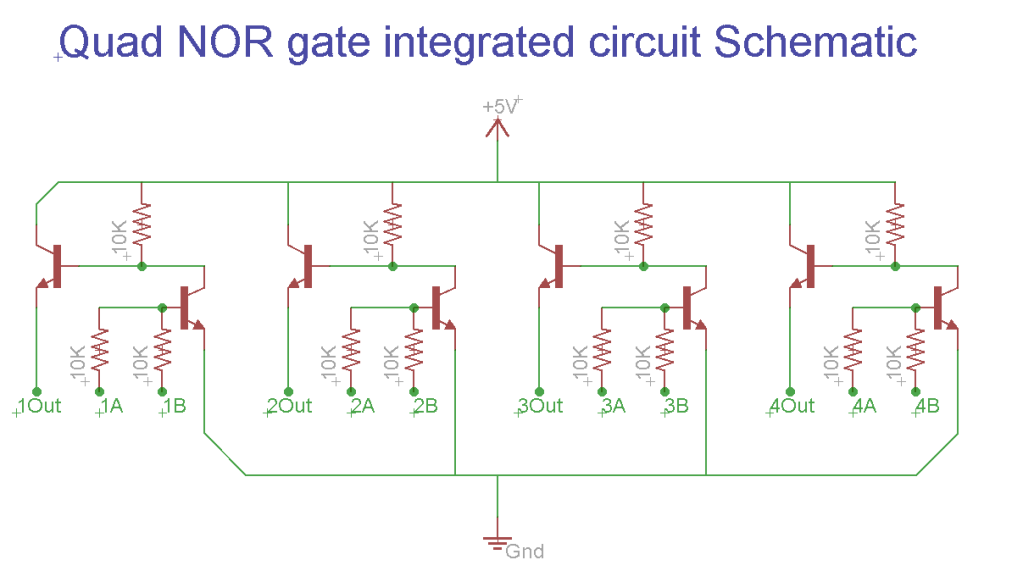

The Schematic of a NOR gate is shown above, as well as the schematic of a generic Quad NOR Gate IC. The latter is rather big, so I have manually inserted it below.

HOW DOES THIS WORK?
The function of a NOR gate is as follows:
  • When both inputs A and B are LOW, our NOR gate outputs a 1 (HIGH state)
  • If either A or B is HIGH, our NOR gate outputs a 0 (LOW state)
  • And finally, if both inputs A and B are HIGH, our NOR gate will output a 0 (LOW state)
We can see this illustrated in the below graph:
Photobucket


Full sized image below:
Photobucket

With these schematics, you can build one NOR gate, or two thousand!
Be creative, and  share some pictures of your own!

Step 3: NOR Gate Uses...?

Picture of NOR Gate Uses...?

There are tons of uses for NOR gates.
One of the most famous of which is using two of them to make one bit of memory (as seen above)
There are tons of uses for nor gate  and the only limit is what you can think of.
Share a picture of your NOR gates in action in the comment section below!

Step 4: GREAT UTILITIES

Picture of GREAT UTILITIES

Here are some awesome things to keep you busy with your breadboard and circuit design!

An AWESOME Schematic & PCB design software

Transistor Gates

the ULTIMATE collection of logic chip data sheets

(CadSoft: Eagle shown above)

Step 5: ===PDF File===
