Yes that is correct the signal from the zero cross needs to be connected to the dim input

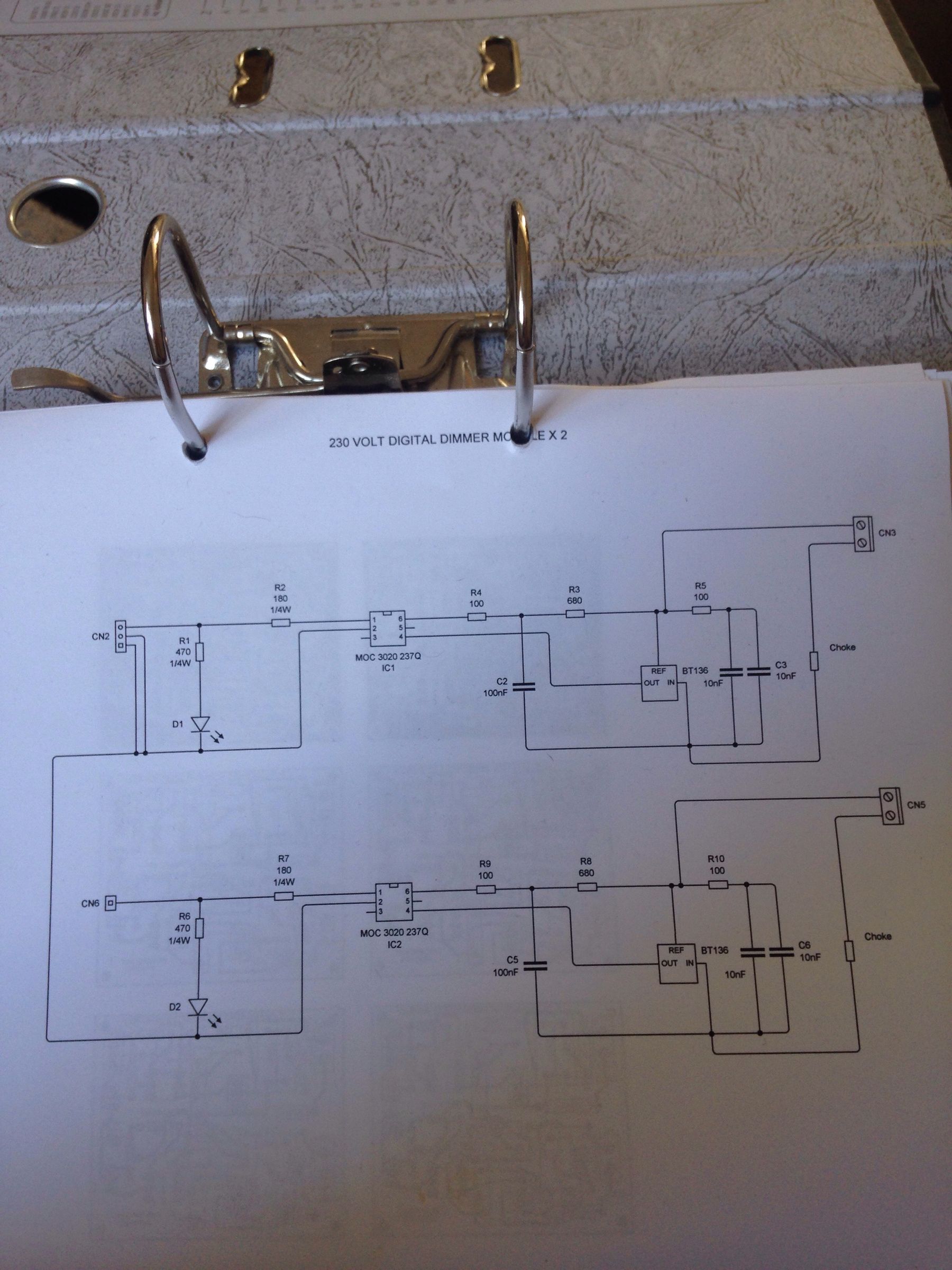

Even without a schematic I can tell you it is zero cross. If there's no voltage on the MOC incorporated triac, there's no output to the gate of the principal triac.
