Orangeboard

ajmifaz10 months ago

Connections which is in the description is wrong.

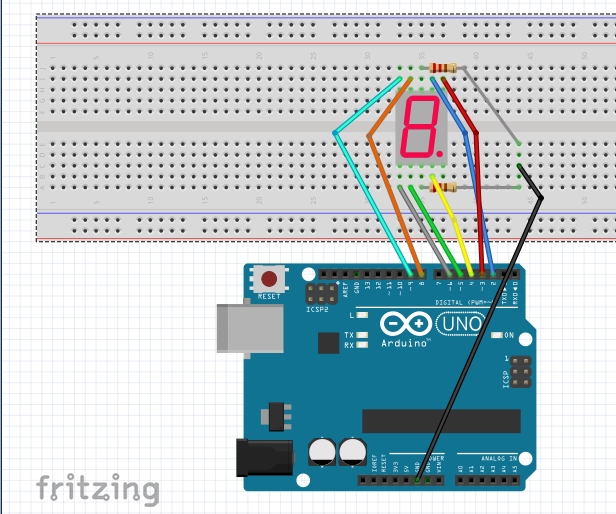

Connections which is in the circuit diagram is the correct one.

Correct description


  1. Arduino Pin 2 to Pin 7.
  2. Arduino Pin 3 to Pin 6.
  3. Arduino Pin 4 to Pin 4.
  4. Arduino Pin 5 to Pin 2.
  5. Arduino Pin 6 to Pin 1.
  6. Arduino Pin 8 to Pin 9.
  7. Arduino Pin 9 to Pin 10.
  8. GND to Pin 3 and Pin 8 each connected with 220 ohm resistors.
