100W LED

This is the demonstration of powering 100W/34V  LED  from 12V power-supply .

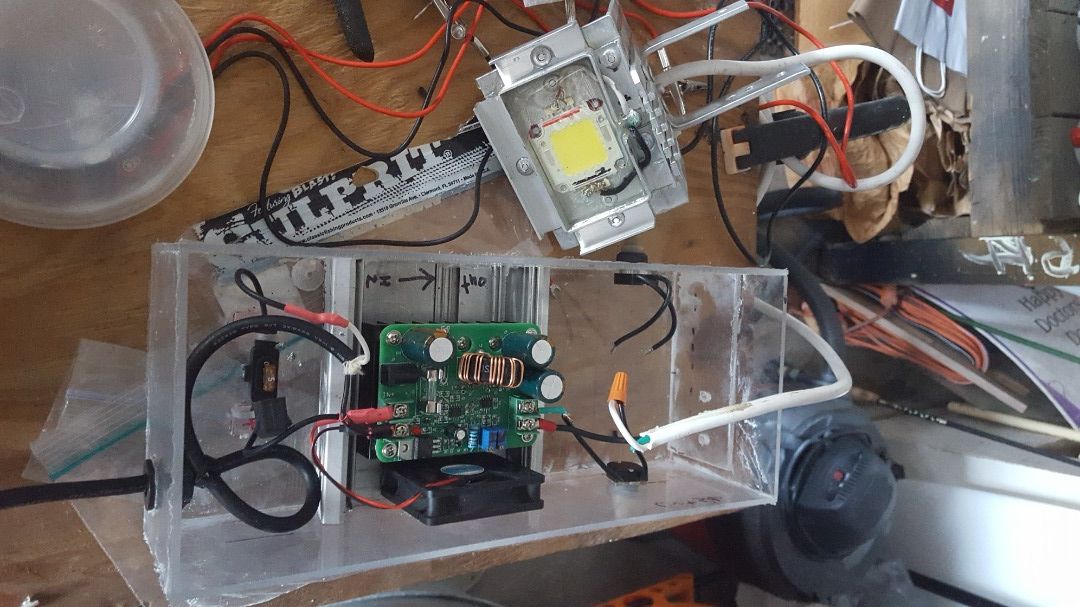

there are 5 parts
1, 12V/7.4Ah UPS sealed lead acid battery


2, DC-DC step up converter [12v to 34V boost converter ]

http://www.ebay.com

3, constant current driver [ not include ]
   low cost LED driver from http://homemadecircuitsandschematics.blogspot.in


4, LED 100w /34V with sufficient heat sink [ Processor heat sink  is a good option  ]

http://www.ebay.com/sch/i.html?_sacat=0&_sop=15&_nkw=100w+led+bulb&_frs=1

5,  LED Lens and Lens holder





 video: old

video: new

Comments

[fkyc]

no need to regulate current?

[BrandonD83]

If you want to get the full operating power from one of these LEDs, you need a constant current driver instead onf a constant voltage one. Something like this is perfect for driving LEDs as it has such a facility for driving them at their peak current. https://www.ebay.co.uk/itm/DC-DC-250W-Adjustable-CC-CV-Constant-Current-Step-Up-Boost-Converter-UK-Stock/192112874383?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649

[sansi]

HEllo,
I need to make led driver With this specification.


1
INPUT VOLATAGE RANGE
70-140 VDC / VAC
2
OUTPUT VOLTAGE
15 VDC
3
OUTPUT CURRENT 1
3 Amp
4
OUTPUT CURRENT 2 (WITH DIMMING FUNCTION)
2.5 Amp
5
SURGE PROTECTION
1.8KV, 1.2/50 µsec
6
WORKING TEMP
0°C to 85°C
7
PROTECTION :
Short circuit

7.1
open circuit

7.2
reverse polarity input

7.3
over voltage

7.4
under voltage

7.5
EMI / EMC PROOF
8
OUTPUT WATTAGE
15VDC X 3 AMP = 45W

[RonaldS1]

Works great!

[Jnweb29]

I have 44v system and 10000mah or 10a so should i get a step down? I'm also trying to hook up blue 12v led lights, so i don't want to stress the battery with 4 different circuits running through it. 1:system/2:charge the lithium-ION/3:100w chip step down/4:12v led step down

[StevenG82]

Hello, im building a 100 watt (maybe 200) flashlight with 1 (or 2) 100 watt led chips. My Question: would it be better to power it with one 12volt 7.2ah battery or two 12volt 5ah batteries in series equaling 24volts 5ah? Please any advice.

[a5378]

can I connect 3 100watts chip to one 600watts invertor

[malthemail]

does anyone know where to get lenses from?

[ptaholcomb123]

Amazon.com :44mm Lens + 50mm Reflector Collimator Base Housing + Fixed bracket for 100W LED Light Lamp $7.49

[ptaholcomb123]

I am making a 100 watt LED light coming from a 600 watt booster. I would like to run two separate lights for two different people with on/off capabilities. Setup: 12v mower bat》7.5A inline fuse》600w booster》2 on/off push buttons with (2)100w led lights on 2 separate peoples hand. (Flounder lights) i have the single one working, can i get 2 to work off one booster or do i have to change the volt pot to work at double and turn them on at the same time or _____?

[Guybrush1973]

I can't see point 3 in image/video. Is that circuit really needful?
I followed the link, but I have no idea which transistor i need to replicate schema. Can someone help me?

[Ramonv8]

I build a 100 W LED too. Maybe some hints for you: https://www.youtube.com/watch?v=Bh3FTfb5i74

[johnfixesstuff]

I made one of these with a different step-up regulator and have drawn up a schematic of it if anyone is interested in seeing more details: http://www.shareyourrepair.com/2015/08/how-to-powe...

It doesn't put out 100W though.

[loganita]

I made the circuit and I encountered a problem.

I supplied from a source computer and functioned properly, but when I powered by a car battery to light it burned.why

[SaurIMX]

Hi, i've tried to use a 50w led with the same driver you have. but the problem is whenever I try to power it with 12V supply, a hissing sound comes out and i only get 27V at the output with load and around 35V without load means without the LED. Is it normal or do I have a faulty driver?

Thanks.

[nathanielg]

I have had the same problem. I found that the gauge wire i was using was either too small or too long causing to great of a voltage drop through it ( from the battery to the boost converter). once the input voltage dropped to about 9-10v the converter would begin to hiss and the led would flicker. So check the input voltage to the converter at the converter and that should solve the problem.

[reklrekl]

Nice thing.
But do i really need a current limiter to drive the LED and if yes, what transistors/resistors will I need?(32V, 3A) and do I need PNP or NPN transistors?
I think the step up converter is current limited at 6A, sso that would kill the LED...

Thanks.

[Jestin_Cubetech]

DC-DC 100W Constant Current Boost Step-up Module Power Supply.

http://www.ebay.com/itm/2-pcs-DC-DC-100W-Constant-Current-Boost-Step-up-Module-Power-Supply-LED-Driver-/310918358323?pt=LH_DefaultDomain_0&hash=item48642da533

[pumpdatbass]

ever check temps on that thing? id be curious as to how much light it actually produced and how warm it is 2-3" from the led edge and center.

[Jestin_Cubetech]

9000 Lumens.
at least 40 deg C
