Introduction: DIY 3D Scanner Based on Structured Light and Stereo Vision in Python Language

About: Teacher that enjoys working with students

This 3D scanner was made using low cost conventional items like video projector and webcams. A structured-light 3D scanner is a 3D scanning device for measuring the three-dimensional shape of an object using projected light patterns and a camera system. Software was developed based on structured light and stereo vision with python language.

Projecting a narrow band of light onto a three-dimensional shaped surface produces a line of illumination that appears distorted from other perspectives than that of the projector, and can be used for an exact geometric reconstruction of the surface shape. Horizontal and vertical light bands are projected on object surface and then captured by two webcams.

Step 1: Introduction

Automatic 3D acquisition devices (often called 3D scanners) allow to build highly accurate models of real 3D objects in a cost- and time-effective manner. We have experimented this technology in scanning a toy to prove performance. Specific needs are: medium-high accuracy, easy of use, affordable cost of the scanning device, self-registered acquisition of shape and color data, and finally operational safety for both the operator and the scanned objects. According to these requirements, we designed a low-cost 3D scanner based on structured light which adopts a versatile colored stripe pattern approach. We present the scanner architecture, the software technologies adopted, and the first results of its use in a project regarding the 3D acquisition of a toy.

In the design of our low-cost scanner, we chose to implement the emitter unit by using a video projector. The reason was the flexibility of this device(which allows to experiment any type of light pattern) and its wide availability. The sensor can be either a custom device, a standard digital still camera or a webcam. it must support high quality color capture (i.e. acquisition of high dynamic range) and possibly with high resolution.

Step 2: Software

Python language was used for programming for three reasons, one it is easy to learn and implement, two we can use OPENCV for image related routines and three it is portable among different operating system so you can use this program in windows, MAC and Linux. You can also configure the software to use with any kind of camera (webcams, SLRs or industrial cameras) or projector with native 1024X768 resolution. It is better to use cameras with more than two times resolution. I personally tested the performance in three different configuration, first one was with two parallel Microsoft webcam cinema and a small portable projector, second one was with two lifecam cinema webcameras that rotated 15 degrees toward each other and Infocus projector, last configuration was with logitech webcameras and Infocus projector. To capture point cloud of object surface we should go trough five steps:

1. Projecting gray patterns and capturing images from two cameras "SL3DS1.projcapt.py"

2. Processing the 42 images of each camera and capture points codes " SL3DS2.procimages.py"

2. Adjusting threshold to select masking for areas to be processed "SL3DS3.adjustthresh.py"

4. Find and save similar points in each camera "SL3DS4.calcpxpy.py"

5 Calculate X,Y and Z coordinates of point cloud "SL3DS5.calcxyz.py"

The output is a PLY file with coordinate and color information of points on object surface. You can open PLY files with CAD software like Autodesk products or an open source sofware like Meshlab.

http://www.autodesk.com/products/personal-design-a...

Python 2.7, OPENCV module and NUMPY should be installed to run these Python programs. I have also developed a GUI for this software in TKINTER that you can find in step six with two sample data sets . You can find additional information on this subject on the following websites:

http://docs.opencv.org/modules/calib3d/doc/camera_...

http://docs.opencv.org/modules/highgui/doc/reading...

http://www.3dunderworld.org/software/

http://arxiv.org/pdf/1406.6595v1.pdf

http://mesh.brown.edu/byo3d/index.html

http://www.opticsinfobase.org/aop/fulltext.cfm?uri...

http://hera.inf-cv.uni-jena.de:6680/pdf/Brauer-Bur...

Step 3: Hardware Setup

Hardware consists of :

1. Two webcameras (Logitech C920C)

2. Infocus LP330 projector

3. Camera and projector stand (made from 3 mm Acrylic plates and 6 mm HDF wood cut with a laser cutter)

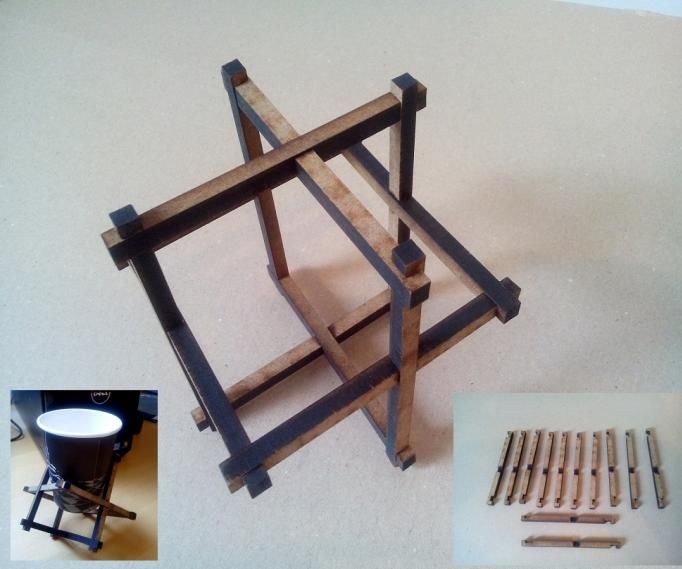

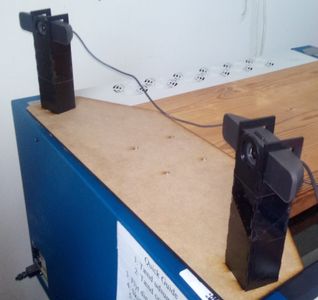

Two cameras and projector should be connected to a computer with two video output like a notebook computer and the projector screen should be configured as an extension to main windows desktop. Here you can see images of cameras, projector and stand. The drawing file ready for cut are attached in SVG format.

The projector is an Infocus LP330 (Native resolution 1024X768) with following specs.
Brightness:650 Lumens Color Light Output:**Contrast (Full On/Off):400:1 Auto Iris:No Native Resolution:1024x768 Aspect Ratio:4:3 (XGA) Video Modes:**Data Modes:MAX 1024x768 Max Power:200 Watts Voltage:100V - 240V Size(cm) (HxWxD):6 x 22 x 25 Weight:2.2 kg Lamp Life(Full Power):1,000 hours Lamp Type:UHPLamp Wattage:120 Watts Lamp Quantity:1 Display Type:2 cm DLP (1) Standard Zoom Lens:1.25:1 Focus:Manual Throw Dist (m): 1.5 - 30.5 Image Size(cm):76 - 1971

This video projector is used to project structured light patterns on the object to be scanned. The structured pattern consists of vertical and horizontal white light strips that are saved on a data file and webcams capture those distorted strips.

Preferably use those cameras that are software controllable because you need to adjust focus, brightness, resolution and image quality. It is possible to use DSLR cameras with SDKs that are provided by each brand.

Assembly and tests were conducted in Copenhagen Fablab with its support.

Step 4: Experimenting With Scanner

For testing the system a fish toy was used and you can see the captured image. All captured file and also the output point cloud is included in attached file,

you can open the PLY point cloud file with Meshlab:

http://meshlab.sourceforge.net/

Step 5: Some Other Scan Results

Here you can see some human face scans and 3d scan of a wall. There are always some outlier points due to reflections or inaccurate image results.

Step 6: 3D Scanner GUI

For testing the 3d scan software in this step I add two data sets one is scan of a fish and another is just a plane wall to see the accuracy of it. Open ZIP files and run SL3DGUI.py. For installation check step 2. Send message to my inbox here for all source codes.

For using 3d scan part you need to install two cameras and projector but for other parts just click on the button. For testing the sample data first click on process then threshold, stereo match and finally point cloud. Install Meshlab to see the point cloud.

http://meshlab.sourceforge.net/
