How to Make Ladder Game Using ATtiny13a and Mini Breadboard.

3,821

37

4

Introduction: How to Make Ladder Game Using ATtiny13a and Mini Breadboard.

About: Sanuki udon is one of "Japanese taste". it is a food made of noodles of popular wheat in Japan. And my soul food. I'm not good at English. So I am studying English .

I made the game that I used 12 LED for using breadboard and ATtiny13a.
I can buy ATtiny13a in a half dollar in Japan. It is a very cheap microcomputer. Memory is low and 1KByte.
I challenged the making of Ladder game in 1KByte.

Step 1: Sketch

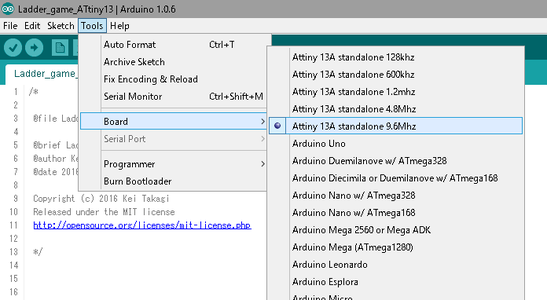

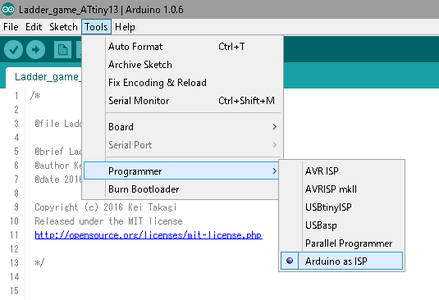

I wrote in a program at ATtiny13a using Arduino IDE used version 1.06 and Arduino core for Attiny13.
Sketch (Arduino source code.)

Fuse bit :hFuse = 0xFF, lFuse= 0x7A
(interne 9.6 MHz clock)

Step 2: Material

1x ATtiny13a
1x Mini breadboard
1x CR2025 CR2032 3v button battery holder
1x Button(Tactile switch)
1x 10K resistor
12x 3mm LED
Jumper wire

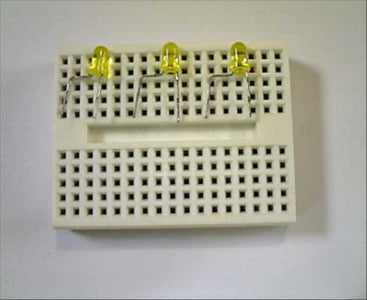

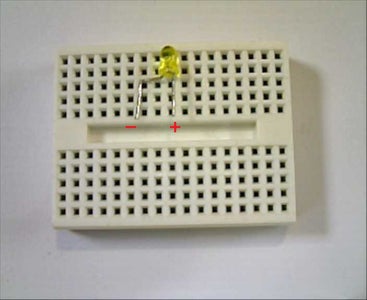

Step 3: LED

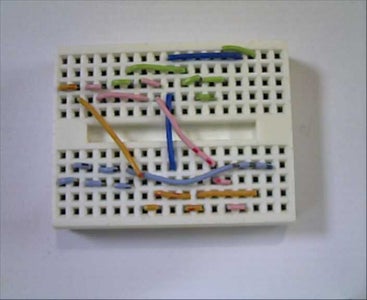

Step 4: Jumper Wire

Step 5: Button

Step 6: ATtiny13a

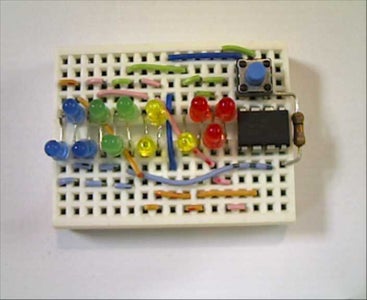

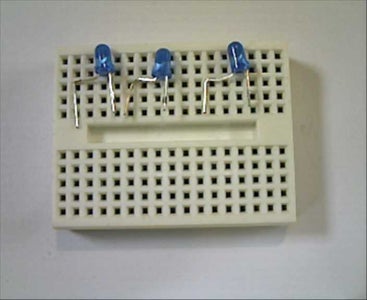

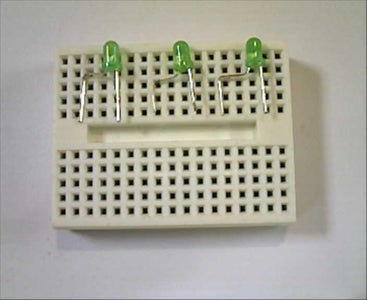

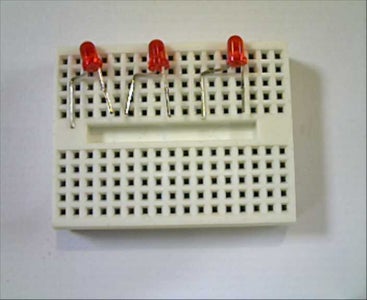

Step 7: 12 LED

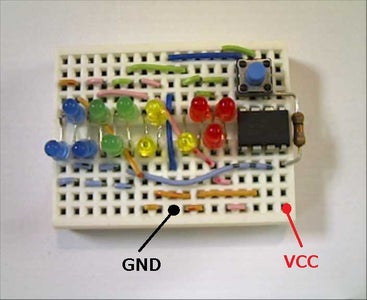

Step 8: CR2025 CR2032 3v Button Battery Holder

Done!
have fun :-)
