Introduction: K'nex Differential (Version 2)

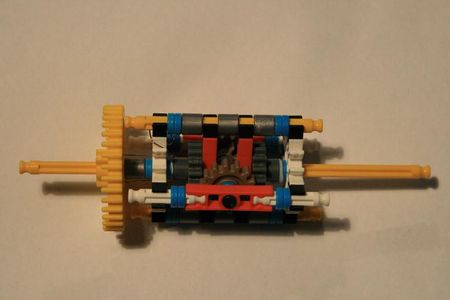

Car differencial built from k'nex for k'nex vehicle by Forsterimages. Here is what your finnished diff. will look like. Also see version one.
Step 1: Parts Required
Here is a list of the parts you will need:
2 white connecters,
2 brown cog wheels,
2 grey cog wheels,
4 orange connecters,
4 yellow rods,
4 white rods,
8 silver spacers,
21 blue spacers,
12 black connecters,
1 yellow cog wheel,
some blue tack.
2 white connecters,
2 brown cog wheels,
2 grey cog wheels,
4 orange connecters,
4 yellow rods,
4 white rods,
8 silver spacers,
21 blue spacers,
12 black connecters,
1 yellow cog wheel,
some blue tack.
Step 2: Step One
Take the white connecters and attach four black connecters.
Step 3: Step Two
Take two of the yellow rods and attach a grey cog wheel and a blue spacer to each.
Step 4: Step Three
Take the navy rod rod and attach the two brown cog wheels to each end placing a grey spacer between them. Then place a blue spacer on each end and then some blue tack.
Step 5:
Take two of the orange connecters and and attach them to both ends of the part made in step three.
Step 6: Step Five
Take the parts made in steps one and two and place the yellow rod through the middle of the white connecter. Do this twice.
Step 7: Step Six
Take two red connecters and four black coonecters and attach them as shown. Do this twice.
Step 8: Step Seven
Take the part made in step four, four white rods and eight blue spacers, and attach them as shown.
Step 9: Step Eight
Take the parts made in steps five and six and a yellow rod and attach them as shown.
Step 10: Step Nine
Take the parts made in steps eight and seven and attach them as shown. Leave one grey and one blue spacer for the next step.
Step 11: Step Ten
Take the part made in step nine and place the yellow cog wheel over one of the yellow rods. Attach it to the nearest white connecter using a piece of wire.
