Step 1: Introduction

This design is the complementary part of our "Yet Another Remote Controller" Board at

This article describes the design of a Remotely Controlled vehicle according to the following requirements:

  • Simple design
  • 2 Sonars - Ultrasonic Sensor HC-SR04
  • 1 Servo motor
  • Remotely controlled by RF 2.4 GHZ and Bluetooth
  • MPU6050 a 3-axis Gyroscope with Micro Electro Mechanical System(MEMS) technology
  • Oled display
  • 2 Potentiometers for parameters adjustments
  • Blue Led
  • Buzzer
  • Battery driven

Step 2: Schematics

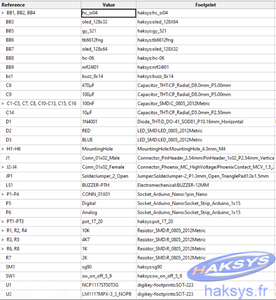

Step 3: BOM ( Bill of Materials )

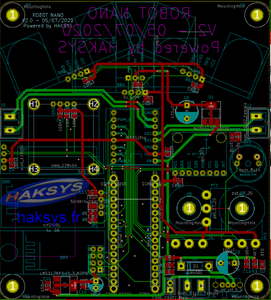

Step 4: Pcb

Step 5: 3D View

Step 6: Assembly

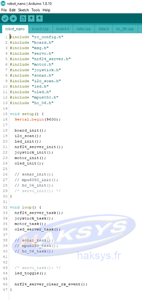

Step 7: Coding

Step 8: Enjoy

A 25 seconds video is embedded to show the use case.
