Introduction: Simple 16 X 2 Character Display Interface

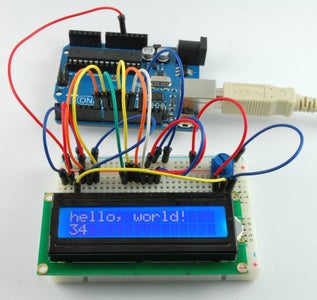

Hi friends, today in this instructables I am going to show you how to use a 16 X 2 character LCD display with Arduino UNO. So, lets start !!!
Step 1: Watch the Video -
Step 2: Components Needed

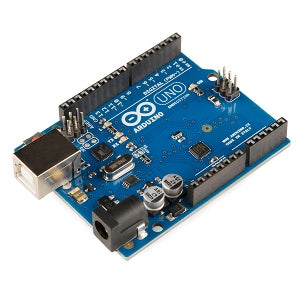

1.) Arduino UNO
2.) USB B type cable
3.) 16 X 2 character LCD Display
4.) 10K ohm potentiometer

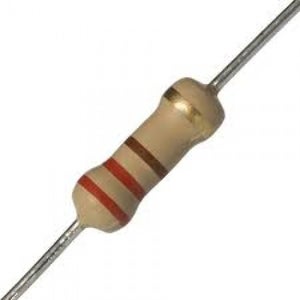

5.) 220 ohm resistor

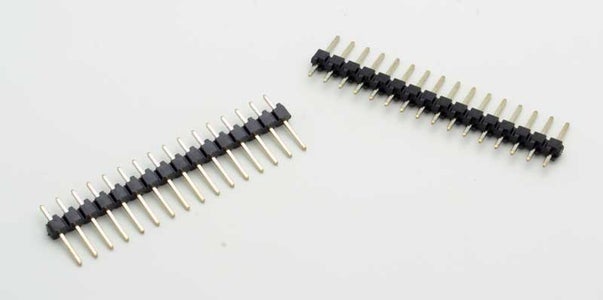

6 a.) 16 pin female header (If you have LCD with male connector)

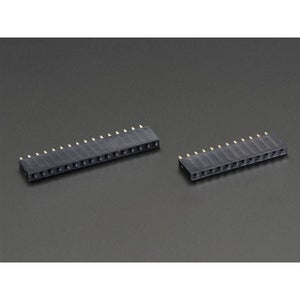

6 b.) 16 pin male header (If you have LCD with female connector)

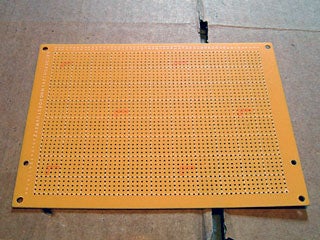

7.) Dot board
Step 3: Tools Needed
1.) Soldering gun
2.) Soldering wire
Step 4: The Schematic
Fix all the components on the breadboard correctly and test it many times until you are sure that it will work properly. You must do this because if any problem occurs after soldering, it will be very difficult to find and correct the problem.
Step 5: The Code
Upload the code in your Arduino board.
Step 6: Solder the Components
Solder the components on your dot board according to the schematic. If it is not working, then check the connections. Also check the brightness of the back-light of the LCD display by rotating the potentiometer.
