Step by Step Tube Notching on Horizontal Milling Machine

Introduction: Step by Step Tube Notching on Horizontal Milling Machine

A quick demonstration of the basic notching operation on a Horizontal Milling Machine.

Step 1: Cutting Notch With Ordinary Hole Saw -

Center tubing to be notched on appropriate jig/holder.

Bringheli jig being used here setup in a simple mill vise.

Centered the tubing using and edge finder then moving table to the center ((edge finder / 2) + tube diameter/ 2)

Step 2: Video of Tube Notch on Horizontal Milling Machine.

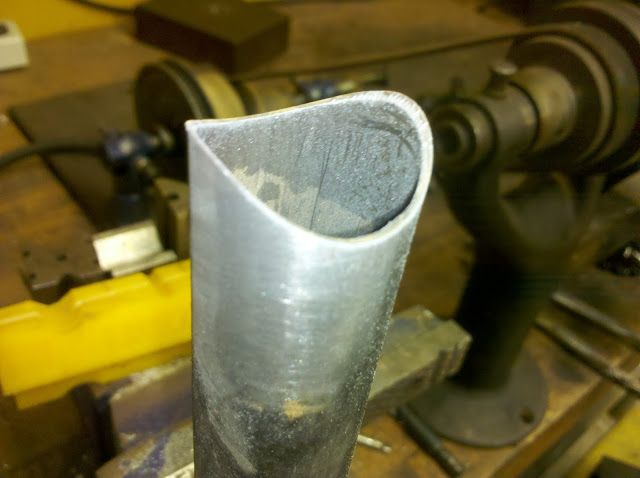

Step 3: Finish Notch With File

Tidy up the initial cut from Milling Machine with a half round file.

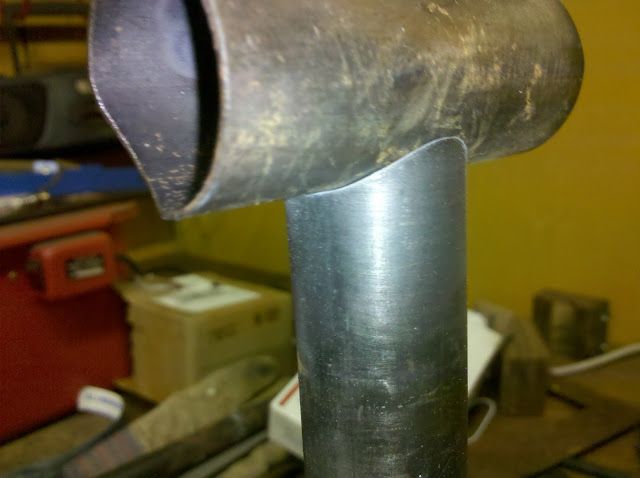

Step 4: Notched Joint Ready for Brazing
