Introduction: Wearable Seashell Light SMD Learn to Solder Kit

By ICStation.com
About: is a global electronics store, which specializes in all kinds of IC products, such DIY Kits, IC accessories, Modules, Robots, Development Board, Transistor, Capacitor and so on. We're located in Shenzhen, Chin…

Hello, Everyone! 🌟

Glad to let you know that ICStation has recently launched a new soldering practice kit: Seashell Design SMD SMT Learn to Solder Kit. It's ideal for soldering practice learning and can also be used as a wearable decorative pendant.

Features about this kit:

  1. Easy to Solder: Designed for both beginners and experienced hobbyists. The flowing lights soldering kit contains a conch shaped circuit board and 18 components. Follow our detailed User Manual to learn it and finish it in 30 minutes
  2. Beautiful Design: The seashell shape and flowing LED light effect make it a unique piece of art.
  3. Versatile Use: Can be attached to bags, keychains, clothes, and more. You can also give it as a beautiful gift to someone who will be sure to be happy.
  4. Educational: Perfect for learning and enhancing surface mounting soldering skills.
  5. Gifts idea: Ideal for crafting heartfelt gifts for Mother's or Father's Day or friend's birthday, this kit offers a rewarding learning experience with a touch of creativity.

Now, let's learn to solder this new soldering kit step by step!

Supplies

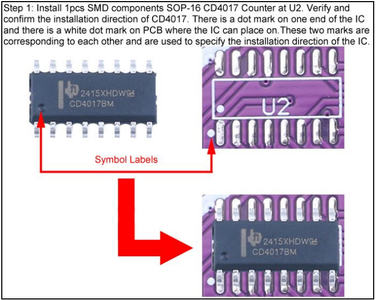

Step 1: Install 1pc SMD Components SOP-16 CD4017 Counter at U2

Install 1pc SMD Components SOP-16 CD4017 Counter At U2

Step 2: Randomly Choose a Pad on the Pcb and Then Melt the Solder

Step 3: Fix CD4017

Step 4: Fix Others Pad on CD4017

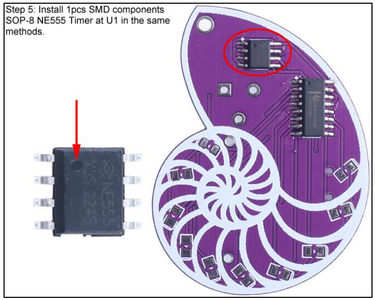

Step 5: Install 1pc SMD Components SOP-8 NE555 Timer at U1

Step 6: Identify the Positive and Negative Poles of the Leds

Step 7: Place Tin on Pads From Pcb Silk Screen Printing D1-D10

Step 8: Fix 10pcs SMD 0805 Blue LED at D1-D10

Step 9: Fix Another One Pad for D1-D10 SMD 0805 Blue LED

Step 10: Install 1pc 1Kohm (102/1001) SMD 0808 Resistor at R2 on the Back Side PCB

Step 11: Install 1pc 100ohm SMD 0805 Resistor at R3

Step 12: Install 1pc 6Pin SMD Toggle Switch at SW3

Step 13: Install 1pc 220uF 16V SMD Aluminum Electrolytic Capacitor at C1

Step 14: Install 1pc CR2032 Battery Socket at B1

Step 15: Install 1pc 10Kohm (103) Potentiometer at R5

Step 16: Install 1pc CR2032 Battery on the Socket

Step 17: Done!

Experience the mesmerizing water flowing LED light effect with our Seashell SMD Kit. Simply press the light switch SW3 and marvel at the artwork you've created! Perfect to attach to your daily bags, keychains, clothes, and more.

Want to give it a try? Click here to get your first SMD soldering project of thisseashell light kit from us ^0^
