Wiring the PAM8610 Amplifier: a Step-by-Step Guide

Amplifiers play a crucial role in audio systems, and the PAM8610 stands out as an exceptional choice, celebrated for its efficiency and audio fidelity. Whether you're an experienced electronics enthusiast or a novice, this guide will walk you through the process of wiring and configuring the PAM8610 amplifier effectively.

Supplies

PAM8610 amplifier module
Power supply (with an output range of 7V to 15V)
Audio source (e.g., smartphone, MP3 player)
Speakers
Speaker wires
Jumper wires
Soldering iron and solder (optional)
Heat shrink tubing (optional)
Multimeter (for testing, if available)

Step 1: Connecting the Power

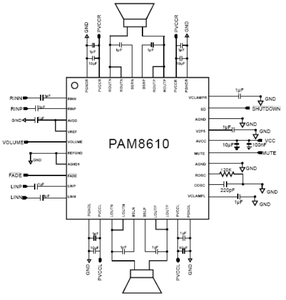

Locate the VCC (Voltage Common Collector) and GND (Ground) pins on the PAM8610 module.
Connect the positive (red) wire from your power supply to the VCC pin.
Connect the negative (black) wire from your power supply to the GND pin.
Ensure that the supplied voltage falls within the recommended range of 7V to 15V.

More about PAM8610 pinout details view here.

Step 2: Connecting the Audio Source

Find the input pins designated for the left (L) and right (R) audio channels on the PAM8610 module.
Connect the left channel of your audio source to the L+ and L- pins.
Connect the right channel of your audio source to the R+ and R- pins.
Ensure the connections are secure and snug.

Step 3: Speaker Wiring

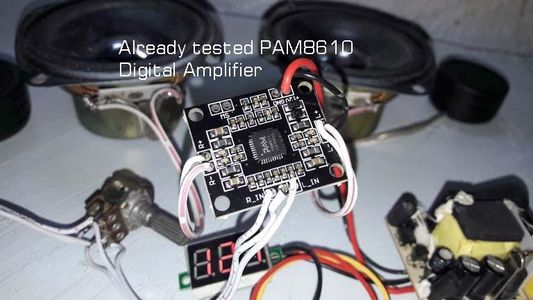

Identify the speaker outputs on the PAM8610 module.
Connect the positive speaker wire (usually red or marked with a "+" symbol) to the L+ and R+ pins.
Connect the negative speaker wire (usually black or marked with a "-" symbol) to the L- and R- pins.

Step 4: Grounding

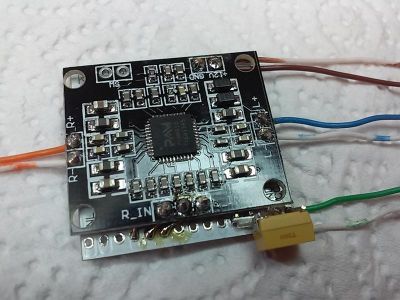

If you encounter any unwanted noise or interference, consider grounding the amplifier's GND to the common ground of your audio system.

This comprehensive guide ensures that you harness the full potential of your PAM8610 amplifier, delivering exceptional audio performance for your projects.
