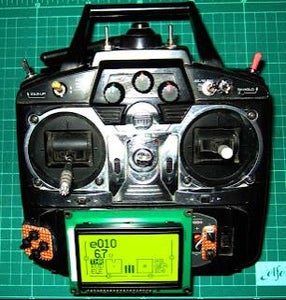

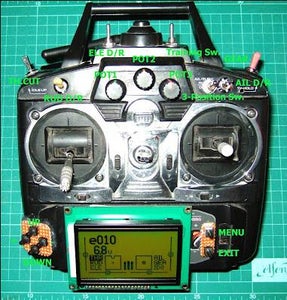

Instruction "How to build DIY Arduino Transmitter OpenTx firmware" will describe how to build 2.4G 8-channel DIY transmitter using MEGA2560 Arduino controller installing OpenTx firmware which similar to commercial transmitter in the market.

The Arduino MEGA2560 will produce traditional PPM signal to send to RF module that can communicate to general transmitter modules like Frsky,Flysky,Orange,..etc.

Difficulty : Hard/Experience

Supplies

www.ebay.com

Step 1: Material

Instruction "How to build DIY Arduino Transmitter OpenTx firmware" will describe how to build 2.4G 8-channel DIY transmitter using MEGA2560 Arduino controller installing OpenTx firmware which similar to commercial transmitter in the market.

The Arduino MEGA2560 will produce traditional PPM signal to send to RF module that can communicate to general transmitter modules like Frsky,Flysky,Orange,..etc. Difficulty : Hard

Materials

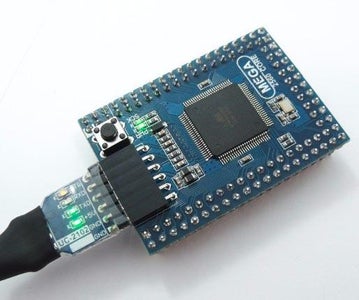

1. 1 - Arduino controller - MEGA2560 Core

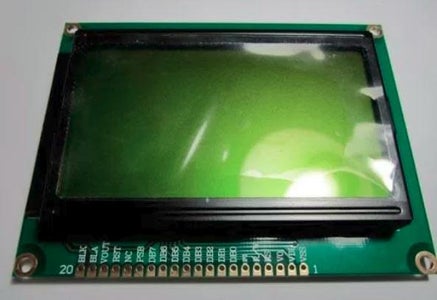

2. 1 - 128x64 LCD display 12864ZW with ST7920 controller

3. 1 - Old RC transmitter body

4. Joy stick gimbals.(mode1,mode2)

5. Push buttons

6. Capacitors - See detail in BOM

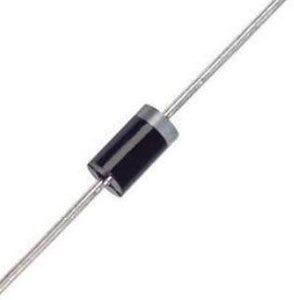

7. Diode 1N4007

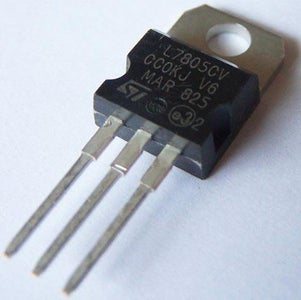

8. 1 - 7805 IC Regulator 5V.

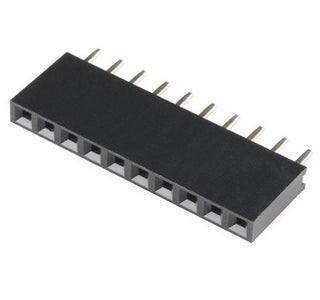

9. Female pin header

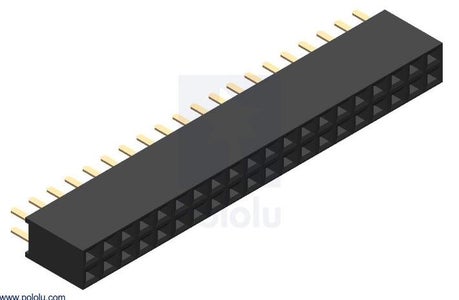

10. Double rows female pin header

11.Single row male pin header

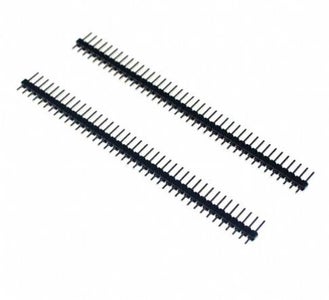

12.Single row long male pin header

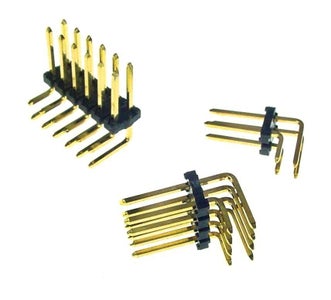

13. Double rows male pin header

14. 1 - LED 5 mm.

15. Resistors

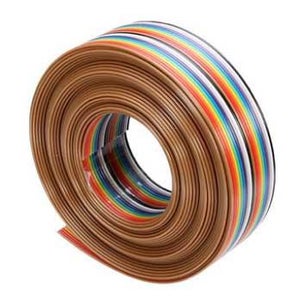

16. Ribbon wires.

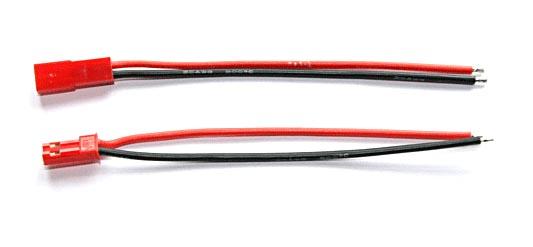

17. Male JST Battery Pigtail

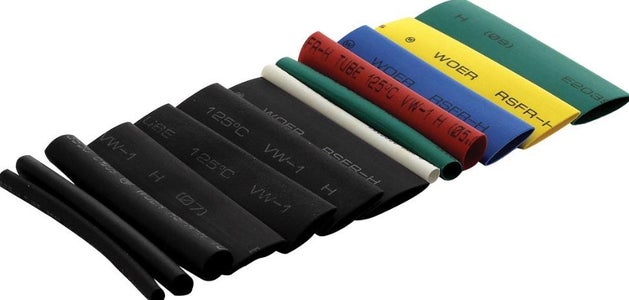

18. Heat shrink tube 1.5 - 10 mm.

19. Velcro tape

20. 1 - PCB.DIY. circuit board

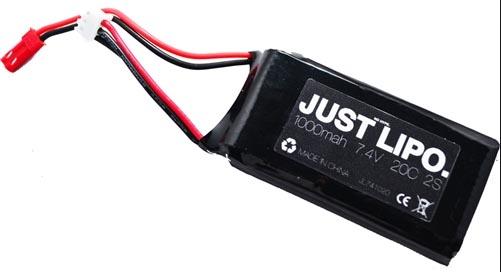

21. Battery Lipo 7.4V.1000 mAh (2cells)

22. Electrical 26 AWG wires

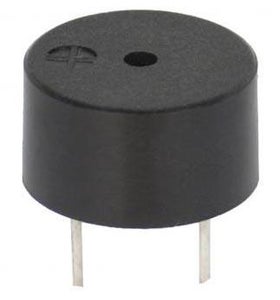

23. 1 - Piezo speaker

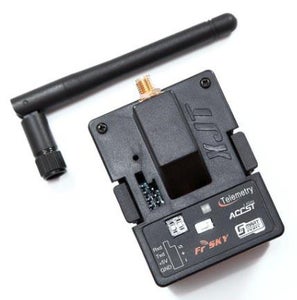

24. 1 - Transmitter module.(PPM)

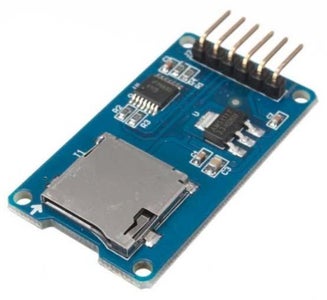

25. 1 - Card reader Arduino

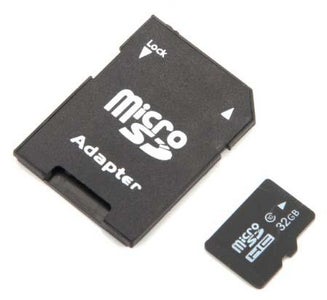

26. 1 - SD card

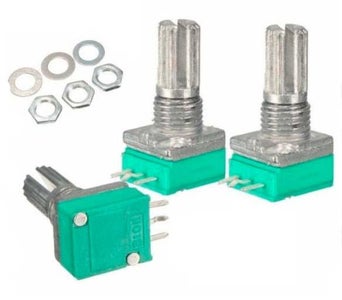

27. Rotary Potentiometer B10K

Tools

1. Soldering gun

2. Soldering wire

3. Soldering paste

4. Screw driver

5. Plier

6. Hot glue gun

7. Epoxy glue

8. Two sides glue tape

9. Plastic cutter

10. Electrical drill

Step 2: Installation Hardware&Software

DIY PCB building

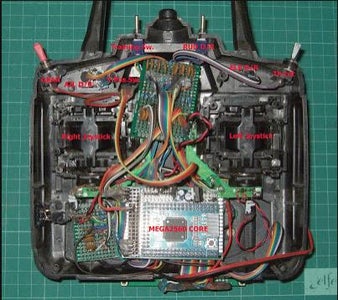

1.Installing electronic parts on DIY PCB according to electrical circuit diagram.(see in Github) 2.Install switches,joy stick gimbals,push buttons on transmitter body. 3.Wiring and connecting PCB - MEGA2560 - Gimbals - Switches - Push buttons according to circuit diagram.

Firmware installation (can do before hardware installation)

1.Downloading software OpenTx companion2.3.x from OpenTx website.

2.Installing OpenTx companion on PC.

3.Running OpenTx companion,downloading firmware by using OpenTx companion.

3.1 Edit setting menu - Radio type : DIY MEGA2560 radio

3.2 Build option - ST7920 - frsky - sdcard - more option as you want

3.3 Default Stick Mode(Futaba) - Mode3 (AIL ELE THR RUD)

3.4 Default Channel Order (Futaba) - A E T R

4.Flashing Arduino MEGA2560 by using usbtiny.

See detail of flasing procedure in Github.

5.Testing hardware post-installation.
