360° Rotating Skateboard RC Car Soldering Practice Kit, Rechargeable DIY Remote Control Car Kit for STEM Education and Learning Electronic Knowledge

【Skateboard Car DIY Kit】: After this soldering project finished, you'll get a smart car that looks just like a skateboard. Using the remote control, you can make the skateboarder boy go forward, backward, left, or right. But wait, there's more—it can even spin 360 degrees in place, giving you a totally unique experience. Perfect for anyone who loves skateboarding or simply enjoys tinkering with gadgets, this kit offers endless possibilities for fun and exploration.
【Soldering Practice Kit】：The PCB board is clearly mapped and labeled for easy connections. This soldering project kit perfect for DIY electronics enthusiasts and serves well as an educational tool for schools or family projects at home, teachers and parents can use it to demonstrate how electronic components come together to create functional devices, making learning interactive and fulfilling.
【Features and Functions】：This diy smart car equipped with four durable rubber tires, making it suitable for both indoor and outdoor play. One of the standout features is its rechargeable functionality, which eliminates the hassle and environmental impact of disposable batteries, once fully charged, you can play for approximately 1-2 hours. 5 adjustable speeds, catering to various scenarios and preferences.
【Unique Gift】: Looking for a standout gift? Consider this rc car kit that not only entertains but also helps teenagers explore the realm of automotive technology and electronics soldering, helping them develop hands-on skills. This kit is an ideal choice for birthdays, Christmas, New Year's, or any other festive occasion or party. Bring it home and surprise your family with excitement!
【Paper Installation Manual】: This solder practice kit includes a color-printed user manual that guides you through the installation process step-by-step with clear graphics and text. It makes assembly straightforward and enjoyable. A great diy electronics kit for any STEM students, but please note, this soldering kit requires certain foundation of basic electronic theoretical knowledge and soldering and hands-on ability.

If you are interested in this kit, please click here: https://www.amazon.com/gp/product/B0D7KW98FW

Supplies

Use Methods:

1>. Switch Toggle Switch to turn ON/OFF work power supply after install 18650 battery.

2>. The buzzer emits a warning sound within 2s after power-ON.

3>. Refer to the function introduction diagram of the infrared remote controller to control and adjust the working status/speed of the intelligent car.

4>. Operating States: Forward, Backward, Turn Left, Turn Right, Left/Right Rotate in place.

5>. Adjust Speed: 5 Adjustable Speed Level. Key #1 is the slowest speed and key #5 if the fastest speed.

6>. Charge: It must turn OFF power by Toggle Switch when start to charging. Stop by Remote Controller and STOP by Turn OFF Power are different! It cannot charge the battery when it on Boot-Up State.

7>. Blue LED Indicator L1 : Power Indicator.

8>. Red LED Indicator L2 : STOP Indicator. Turn OFF when running.

9>. Red LED Indicator R : 18650 Lithium Battery Charging Indicator.

10>. Green LED Indicator G : 18650 Lithium Battery Charged Indicator.

11>. DC-005 Power Socket : Battery Charge Interface. But can not provide work power for Car.

12>. LED Indicator L1-L4 ON PCB HE006-B: LED keep Flashing in turns when Car is running and stop flashing when car is stopping. Note: LED may randomly remain ON during each pause.

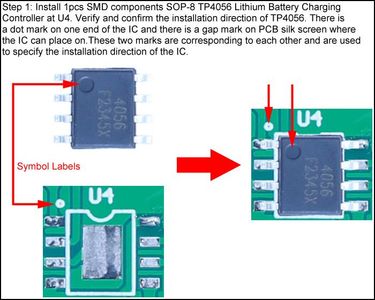

Step 1: Install 1pcs SMD Components SOP-8 TP4056 Lithium Battery Charging Controller at U4

Please be patient！

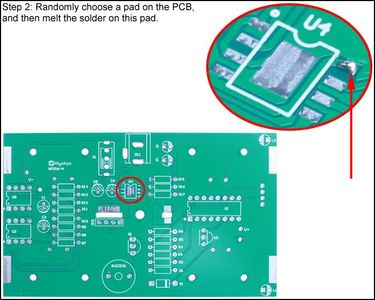

Step 2: Randomly Choose a Pad on the PCB, and Then Melt the Solder on This Pad

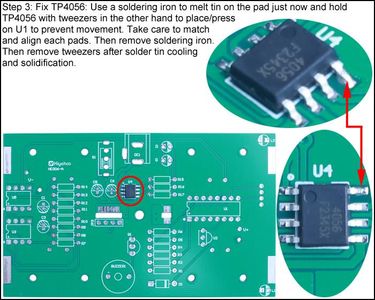

Step 3: Fix TP4056

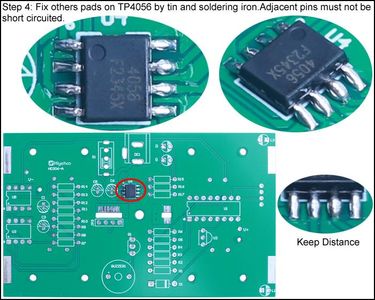

Step 4: Fix Others Pads on TP4056 by Tin and Soldering Iron

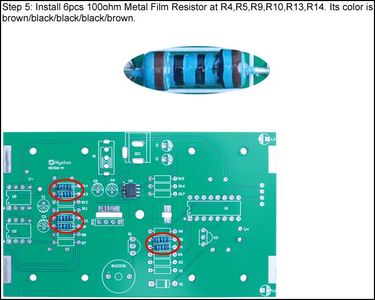

Step 5: Install 6pcs 100ohm Metal Film Resistor at R4,R5,R9,R10,R13,R14

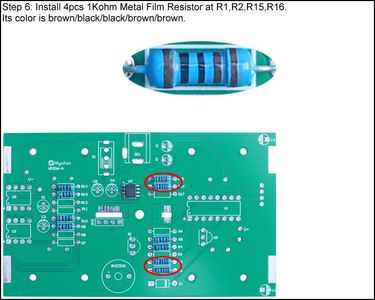

Step 6: Install 4pcs 1Kohm Metal Film Resistor at R1,R2,R15,R16

Step 7: Install 6pcs 51Kohm Metal Film Resistor at R3,R6,R7,R8,R11,R12

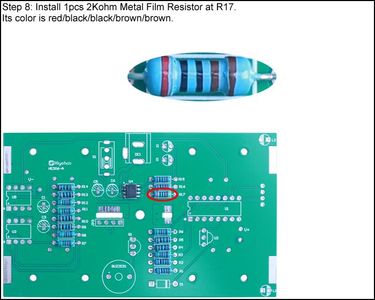

Step 8: Install 1pcs 2Kohm Metal Film Resistor at R17

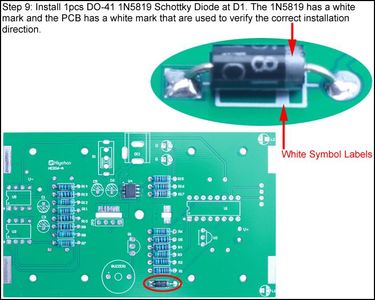

Step 9: Install 1pcs DO-41 1N5819 Schottky Diode at D1

360° Rotating Skateboard RC Car Soldering Practice Kit, Rechargeable DIY Remote Control Car Kit for STEM Education and Learning Electronic Knowledge

Supplies

Step 1: Install 1pcs SMD Components SOP-8 TP4056 Lithium Battery Charging Controller at U4

Step 2: Randomly Choose a Pad on the PCB, and Then Melt the Solder on This Pad

Step 3: Fix TP4056

Step 4: Fix Others Pads on TP4056 by Tin and Soldering Iron

Step 5: Install 6pcs 100ohm Metal Film Resistor at R4,R5,R9,R10,R13,R14

Step 6: Install 4pcs 1Kohm Metal Film Resistor at R1,R2,R15,R16

Step 7: Install 6pcs 51Kohm Metal Film Resistor at R3,R6,R7,R8,R11,R12

Step 8: Install 1pcs 2Kohm Metal Film Resistor at R17

Step 9: Install 1pcs DO-41 1N5819 Schottky Diode at D1

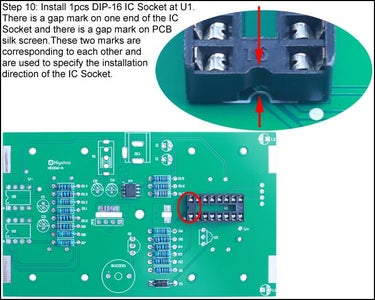

Step 10: Install 1pcs DIP-16 IC Socket at U1

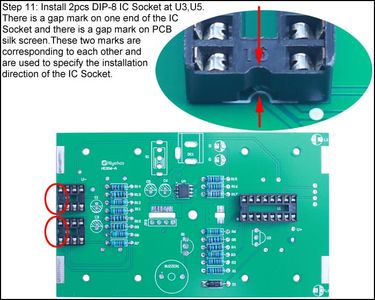

Step 11: Install 2pcs DIP-8 IC Socket at U3,U5

Step 12: Determine the Positive (anode) and Negative (cathode) Leads of the LED

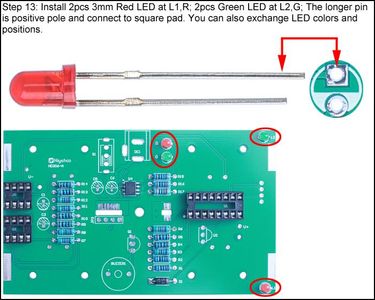

Step 13: Install 2pcs 3mm Red LED at L1,R; 2pcs Green LED at L2,G

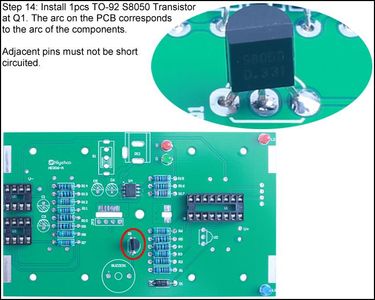

Step 14: Install 1pcs TO-92 S8050 Transistor at Q1

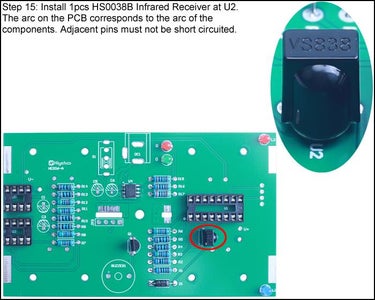

Step 15: Install 1pcs HS0038B Infrared Receiver at U2

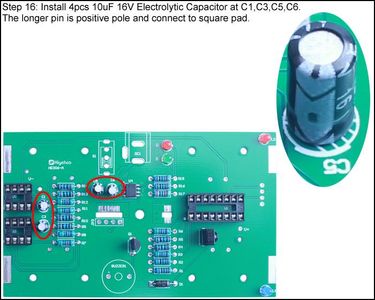

Step 16: Install 4pcs 10uF 16V Electrolytic Capacitor at C1,C3,C5,C6

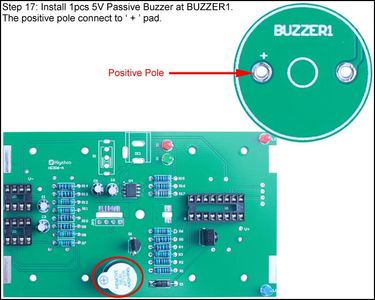

Step 17: Install 1pcs 5V Passive Buzzer at BUZZER1

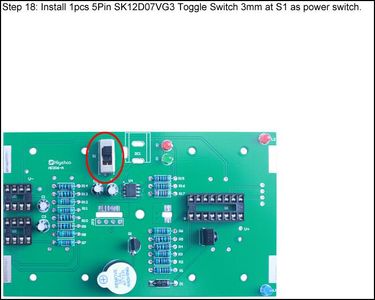

Step 18: Install 1pcs 5Pin SK12D07VG3 Toggle Switch 3mm at S1 As Power Switch

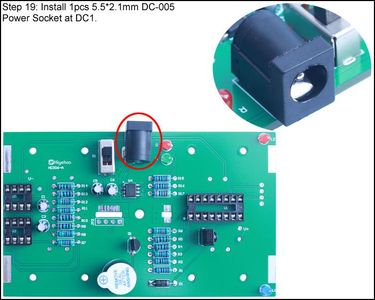

Step 19: Install 1pcs 5.5*2.1mm DC-005 Power Socket at DC1

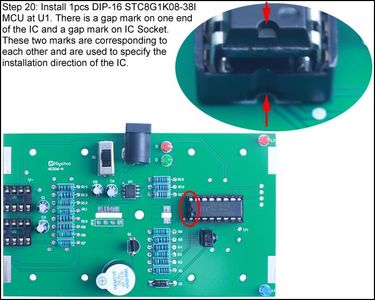

Step 20: Install 1pcs DIP-16 STC8G1K08-38I MCU at U1

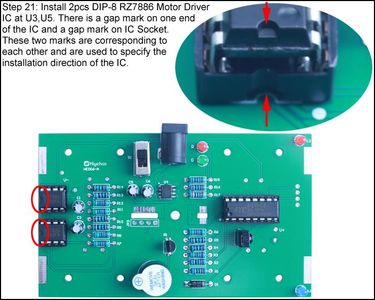

Step 21: Install 2pcs DIP-8 RZ7886 Motor Driver IC at U3,U5

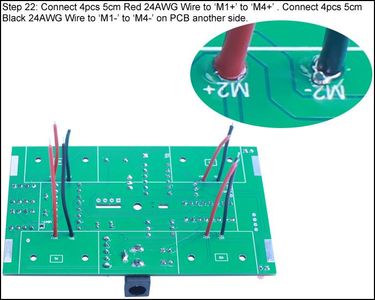

Step 22: Connect 4pcs 5cm Red 24AWG Wire to ‘M1+’ to ‘M4+’

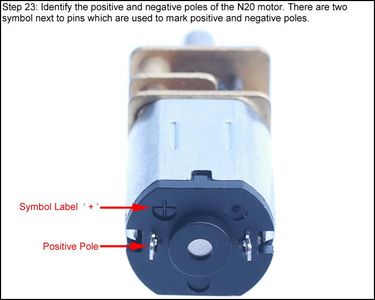

Step 23: Identify the Positive and Negative Poles of the N20 Motor

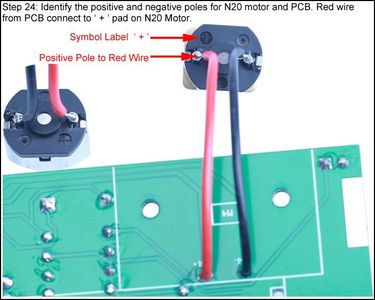

Step 24: Identify the Positive and Negative Poles for N20 Motor and PCB

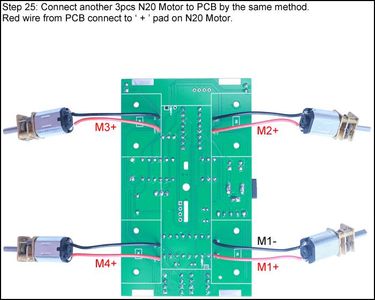

Step 25: Connect Another 3pcs N20 Motor to PCB by the Same Method

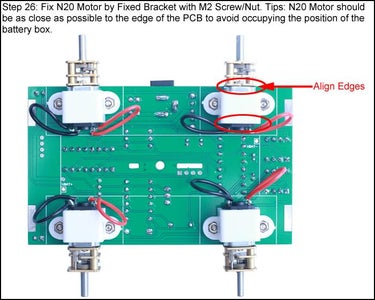

Step 26: Fix N20 Motor by Fixed Bracket With M2 Screw/Nut

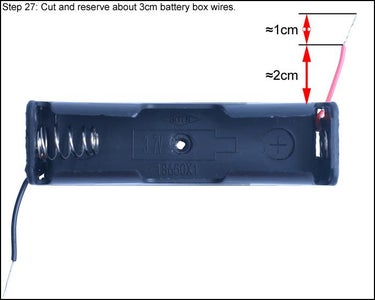

Step 27: Cut and Reserve About 3cm Battery Box Wires

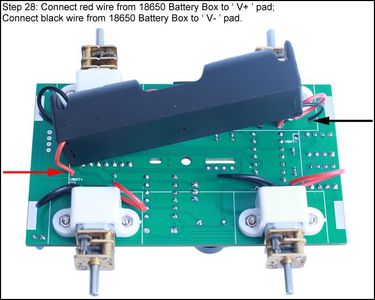

Step 28: Connect Red Wire From 18650 Battery Box to ‘ V+ ’ Pad; Connect Black Wire From 18650 Battery Box to ‘ V- ’ Pad

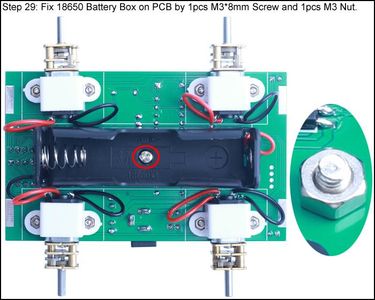

Step 29: Fix 18650 Battery Box on PCB by 1pcs M3*8mm Screw and 1pcs M3 Nut

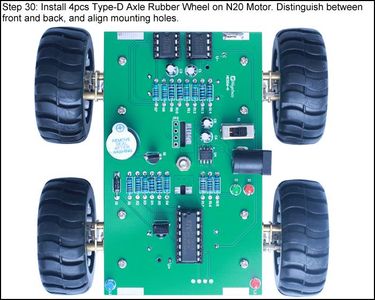

Step 30: Install 4pcs Type-D Axle Rubber Wheel on N20 Motor

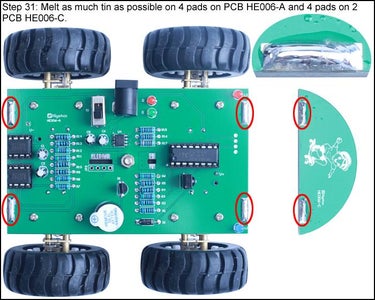

Step 31: Melt As Much Tin As Possible on 4 Pads on PCB HE006-A and 4 Pads on 2 PCB HE006-C

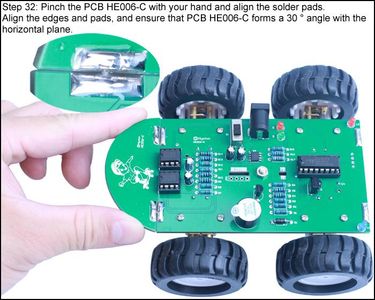

Step 32: Pinch the PCB HE006-C With Your Hand and Align the Solder Pads

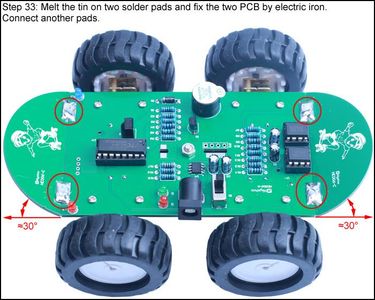

Step 33: Melt the Tin on Two Solder Pads and Fix the Two PCB by Electric Iron

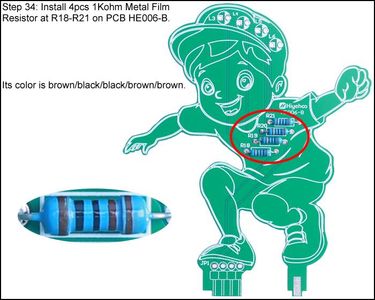

Step 34: Install 4pcs 1Kohm Metal Film Resistor at R18-R21 on PCB HE006-B

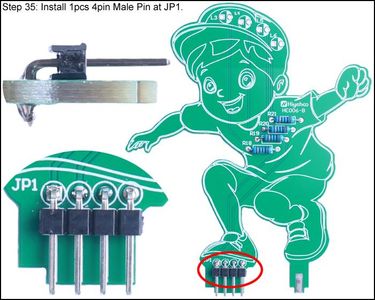

Step 35: Install 1pcs 4pin Male Pin at JP1

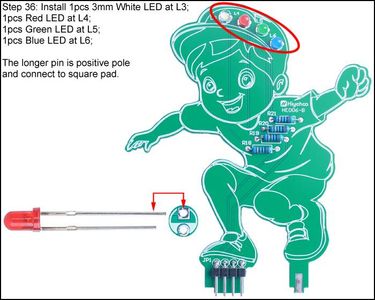

Step 36: Install 1pcs 3mm White LED at L3; 1pcs Red LED at L4; 1pcs Green LED at L5; 1pcs Blue LED at L6

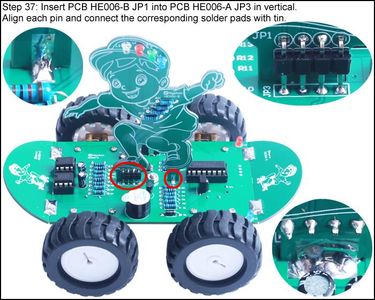

Step 37: Insert PCB HE006-B JP1 Into PCB HE006-A JP3 in Vertical
