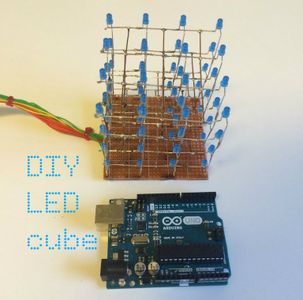

Introduction: Arduino LED Cube

About: I am always making electronic stuff. I like to do Arduino projects best. more projects coming soon!

This project requires some soldering expertise, but its an easy one and perfect for Arduino beginners.

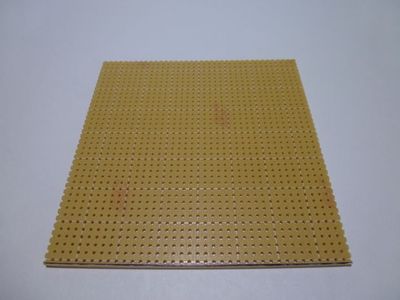

Step 1: PARTS

parts I used:

* arduino UNO

* PCB board

* 64x diffused LEDs

* wires from ethernet cable

* 20x male pins for Arduino

* 20x shrink tubes

* 4x 100 OHM Resistors

Step 2: The Cube

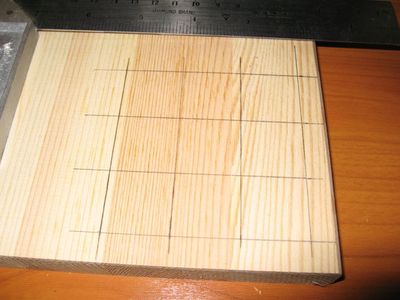

drill 16 holes in a cardboard box or in wood for the layers to be held in place while you soldier them.

Step 3: Soldering

every layer is going to be connected to one resistor, the resistor is connected to -

[(x,y)-Pin]

(1,1)-13

(1,2)-12

(1,3)-11

(1,4)-10

(2,1)-9

(2,2)-8

(2,3)-7

(2,4)-6

(3,1)-5

(3-2)-4

(3-3)-3

(3,4)-2

(4,1)-1

(4,2)-0

(4,3)-A5

(4,4)-A4

Layers

[Layer-Pin]

a-A0

b-A1

c-A2

d-A3

Step 4: Code

If there is any questions just ask me and if you have made this please post an photo! :)

thanks for watching!
