Introduction: Arduino NeoPixel LED Ring Fire Simulation

About: Arduino fan!

In this tutorial we will learn how to make a Fire simulation using the Neopixel Led Ring Ws2812 and Arduino.

Watch the video!

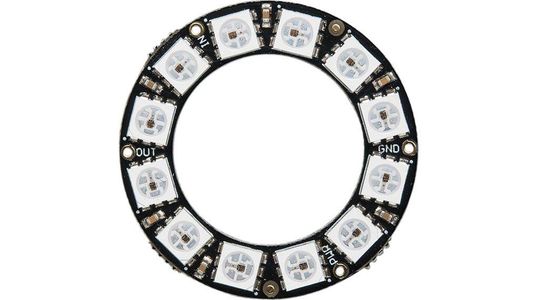

Step 1: What You Will Need


Step 2: Brought by PCBWay

Thank you PCBWay for supporting this tutorial and helping users learn more about electronics.

What I like about the PCBWay is that you can get 10 boards for approximately $5 which is really cost effective for professional made boards, not to mention how much time you save!

Go check them out here. They also offer a lot of other stuff in case you might need it like assembly3D printingCNC machining and a lot more.

Step 3: The Circuit

  1. Connect LED Ring pin [VCC] to Arduino pin [+5V]
  2. Connect LED Ring pin [GND] to Arduino pin [GND]
  3. Connect LED Ring pin [IN] or (DI) to Arduino digital pin [6]


Step 4: Start Visuino, and Select the Arduino UNO Board Type

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

Step 5: In Visuino Add Components

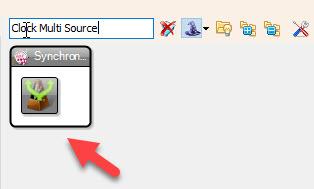

  1. Add "Random Clock Generator" component
  2. Add "Clock Multi Source" component

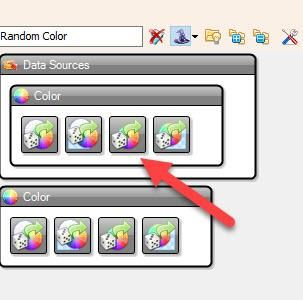

  3. Add "Random Color" component

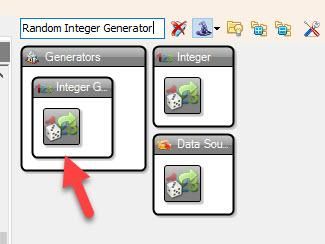

  4. Add "Random Integer Generator" component
  5. Add "NeoPixels" component


Step 6: In Visuino Set Components

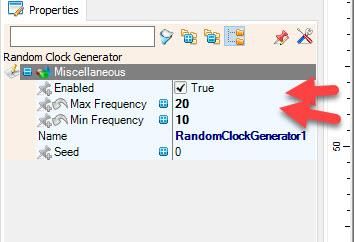

  • Select "RandomClockGenerator1" and in the properties window set "Max Frequency" to 20 and "Min Frequency" to 10

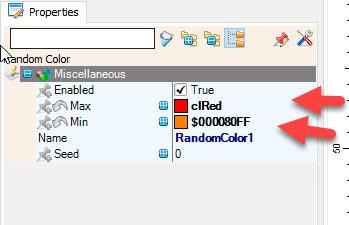

  • Select "RandomColor1" and in the properties window set "Max" to clRed and "Min" to $000080FF <<Orange

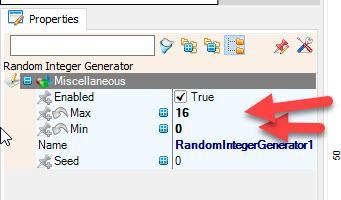

  • Select "RandomIntegerGenerator1" and in the properties set "Max" to 16 and "Min" to 0

Note if you are using a LED Ring with more or less then 16 LEDs then replace the number 16 with your number of LEDs

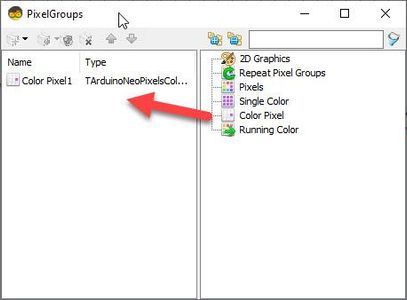

  • Double click on the "NeoPixels1" and in the "PixelGroups" window drag "Color Pixel" to the left
  • On the left side of the "PixelGroups" window then select "Color Pixel1" and in the properties window set "Count Pixels" to 12 or 16 (Depends on how many LED your LED ring is having)
  • Close the "PixelGroups" window




Step 7: In Visuino Connect Components

  1. Connect "RandomClockGenerator1" pin [Out] to "ClockMultiSource1" component pin [In]
  2. Connect "ClockMultiSource1" pin [0] to "RandomColor1" component pin [Clock]
  3. Connect "ClockMultiSource1" pin [1] to "RandomIntegerGenerator1" component pin [Clock]
  4. Connect "RandomColor1" component pin [Out] to "NeoPixels1" >Color Pixel1 component pin [Color]
  5. Connect "RandomIntegerGenerator1" component pin [Out] to "NeoPixels1" >Color Pixel1 component pin [Index]
  6. Connect "NeoPixels1" component pin [Out] to Arduino digital pin[6]


Step 8: Generate, Compile, and Upload the Arduino Code

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Step 9: Play

If you power the Arduino UNO module, athe LED ring will start to change its colors that will imitate the fire.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it here and open it in Visuino: https://www.visuino.eu
