Introduction: Arduino Simple Hand Motion V1
Arduino simple hand motion.
Detect hand motion direction and speed.
Can be used to control any device... I let you the magic imagination
You will need:
-1 *Arduino (Uno)

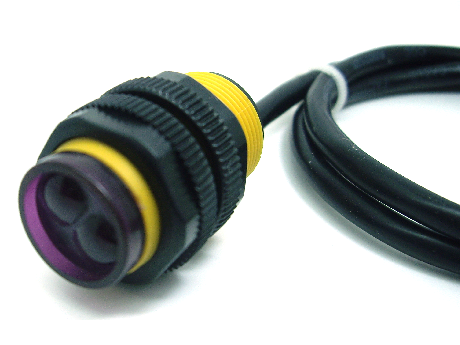

-3 or 5 or ... IR switch ( I used E18D80NK) ( 6€ )
-wires.
-3* 1k resistors
- 3* LEDs.
The code :
---------------------------------------
#define sIRA 10
#define sIRB 8
#define sIRC 9
#define LED1 3
#define LED2 4
#define LED3 5
char orders[3] = {'0','0','0'};
int indexOrder = 0;
//speed of detection Ms
int Captspeed = 1;
long tA;
long tB;
long tC;
void setup() {
Serial.begin (9600);
for(int i = 8;i<=10;i++)
pinMode(i, INPUT);
for(int i = 3;i<=5;i++)
pinMode(i, OUTPUT);
}
void loop() {
//Reset Command after 800 Msecond
if(millis()%1000 > 800)
ResetCommand();
//If we have 3 signals , Calculate Command
if(tA > 0 && tB> 0 && tC>0)
{
int command = CalculateCommand();
if(command <=0)
DoCommand(command);
}
//check for sensors
if(indexOrder > 2)
indexOrder = 0;
int vA = digitalRead(sIRA);
if(tA == 0 && vA == 0) tA = millis();
int vB = digitalRead(sIRB);
if(tB == 0 && vB == 0) tB = millis();
int vC = digitalRead(sIRC);
if(tC==0 && vC == 0) tC = millis();
//Stop Command
if(vA == 0 && vB == 0 && vC == 0 )
{
// DoCommand(0);
}
delay(Captspeed);
}
int CalculateCommand(void)
{
Serial.print("tA = ");
Serial.println(tA);
Serial.print("tB = ");
Serial.println(tB);
Serial.print("tC = ");
Serial.println(tC);
delay(1);
if((tA <= tB) && tA <= tC)
return -3 ;// FORWRD
if((tB <= tC) && tB <= tA)
return -2 ;// LEFT
if((tC <= tB) && tC <= tA)
return -1 ;//RIGHT
//Etc
return 1;
}
void DoCommand(int command)
{
switch (command)
{
case 0: Serial.println("Stopped");delay(500);break;
case -1: Serial.println("Turn RIGHT ");digitalWrite(LED1,HIGH); delay(1000);break;
case -2: Serial.println("Turn LEFT ");digitalWrite(LED2,HIGH); delay(1000);break;
case -3: Serial.println("GO FORWARD ");digitalWrite(LED3,HIGH); delay(1000);break;
case -4: Serial.println(" GO BACK "); delay(1000);break;
default : Serial.println("NO Command detected");break;
}
ResetCommand();
}
void ResetCommand()
{
for(int i = 3;i<=5;i++)
{
digitalWrite(i,LOW);//ALL LEDs
}
tA = 0;//Reset time A
tB = 0;//Reset time B
tC = 0;//Reset time C
}
