Introduction: Ballet Pointe Shoe

By

For my Extended Essay in Design Technology, I made a ballet pointe shoe to carry out the finite element analysis to support my research regarding ballet pointe shoes and how they can be made more user centred.

Supplies

Fusion 360

Step 1: Base

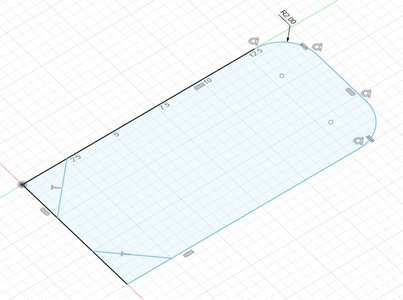

Select Sketch on the top plane, make a 2-point rectangle and using fillet, curve its edges.

Step 2: Fillet

After filleting and sharpening the edges, this is what it will look like

Step 3: Defining the Shape

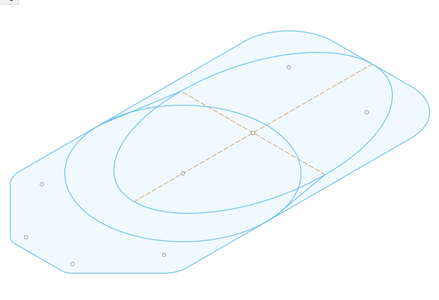

Make a circle and an ellipse

Step 4: Extrude

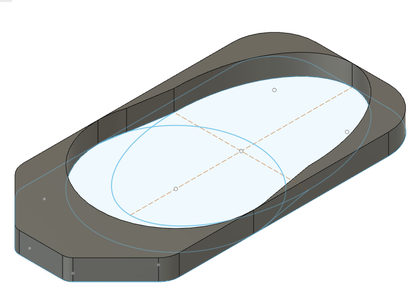

Then extrude the edges

Step 5: Extrude the Bottom

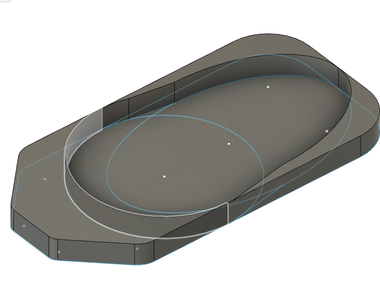

To not make it clear from the base, extrude the base by a small margin

Step 6: Making the Straps

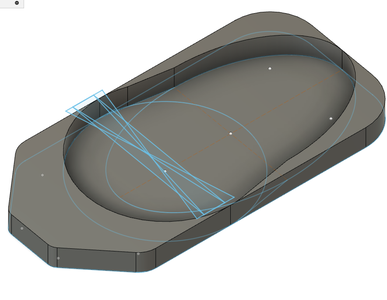

Create an offset plane from the bottom of the shoe that is 1.2cm above the base. Create a rectangle and make diagonal lines

Step 7: Extrude

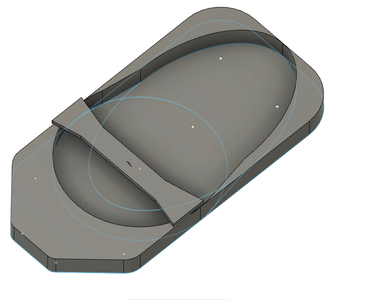

Extrude it and you're done!
