Introduction: Building a Low-Noise Audio Preamplifier With KSC1845 Transistor

By

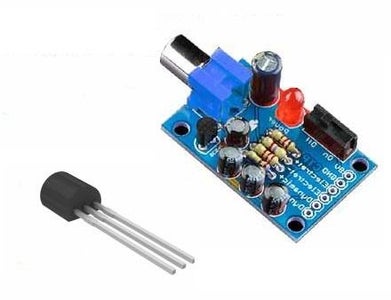

The KSC1845 is a low-noise NPN bipolar junction transistor (BJT) known for its application in audio circuits. In this project, we'll guide you through creating a simple and effective low-noise audio preamplifier using the KSC1845 transistor. This preamplifier is suitable for enhancing weak audio signals from various sources, providing an ideal foundation for audio enthusiasts and DIY projects.

Supplies

  1. KSC1845 NPN Transistor
  2. Resistors (e.g., 10kΩ, 100kΩ)
  3. Capacitors (e.g., 10µF electrolytic, 0.1µF ceramic)
  4. Audio input source (e.g., microphone, guitar)
  5. Audio output device (e.g., amplifier, headphones)
  6. Breadboard and jumper wires

Step 1: Place the KSC1845 Transistor

  • Position the KSC1845 transistor on the breadboard.
  • Connect the collector (C) pin to the positive power rail.
  • Connect the emitter (E) pin to the ground rail.
  • Connect the base (B) pin to the junction of a 100kΩ resistor and a 10µF capacitor. Connect the other end of the resistor to the positive rail.

Step 2: Connect the Input Source

  • Connect the positive terminal of the audio source (microphone, guitar) to the junction of the 100kΩ resistor and the 10µF capacitor.
  • Connect the negative terminal of the audio source to the ground rail.

Step 3: Attach the Output

Connect the output from the KSC1845 preamplifier circuit to the input of your audio amplifier or headphones.

Step 4: Power Supply Connection

  • Connect the positive power supply to the positive power rail.
  • Connect the negative power supply to the ground rail.

Step 5: Test and Adjust

  • Connect your audio source and output device.
  • Power on the circuit and test the audio output.
  • Adjust resistor and capacitor values for desired gain and frequency response.

Notes:

  • The KSC1845 transistor is chosen for its low-noise characteristics, making it suitable for audio preamplification.
  • Experiment with different resistor and capacitor values to customize the gain and frequency response of the preamplifier.
  • Ensure that the power supply voltage is within the specified range for the KSC1845 transistor.


Conclusion


Building a low-noise audio preamplifier with the KSC1845 transistor provides an excellent opportunity to explore basic transistor amplifier design and experiment with component values. This project serves as a valuable foundation for audio enthusiasts and DIYers interested in enhancing audio signals with a simple and effective preamplifier circuit.
