Green Tea Bottle Backpack Mount

I had these used Itoen Green Tea bottles saved and thought they would make great water bottles but I needed a way to attach them to my backpack for quick access.

Supplies

Supplies:

-Itoen 2 Liter Bottle

Tools:

-Hot Glue Gun

-3D Printer

-Calipers or Tape Measure

Software:

-Fusion 360

-Creality Slicer

Step 1: Measure

-Take measurements of the length and width

-Measure the edge length

Step 2: Model Band

-Sketch a rectangle with the X and Y measurements taken

-Extrude with your desired width, in this case 30mm

-Chamfer the edges to match the edges on the bottles

-Shell both the top and the bottom faces making the wall 1mm

Step 3: Model Hook

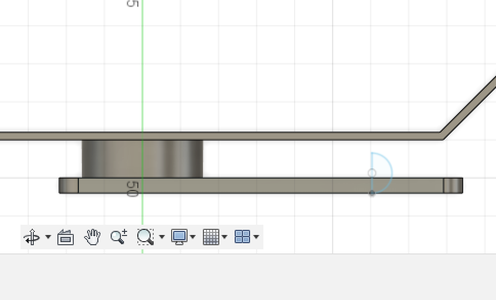

-Make a circle to add the hook onto

-Add a rectangle onto the circle

-Fillet the edges of the rectangle

-Add a semicircle to the top of the rectangle

-Extrude the semicircle, this will help keep the bag strap locked in

-Remember! make another version with the hook reversed for printing

Step 4: Print

-Export your two models into a slicer

-I used 20% infill with skirt

-printed on a Ender 3 Pro

I attached the files if you want to use them.

Step 5: Attach

-Glue the two bands to the bottle

-Enjoy!
