Introduction: How to Bulid an Unique FM Radio Step by Step

By
About: You Wanna Experience Fantastic Through-hole/SMD/SMT Electronics Soldering? You Wanna Spark & Encourage Teenager's Talents & Passions and Keep Electronics Learning Interesting and Fun? MiOYOOW is a global onlin…

The Electronic Solder DIY Kits are used to installed to a FM Digital Radio (87-108MHz).

This soldering DIY kit help you to learn basic electronic knowledge and circuit principles, and practice soldering skills enjoyably for you, or students, or DIYers. At the same time, you will own a FM Stereo which has excellent sound quality, stable performance and cool appearance when you finish the project.

Supplies

Getting started with basic electronics is easier than you might think. This Instructable will hopefully demystify the basics of electronics so that anyone with an interest in building circuits can hit the ground running.

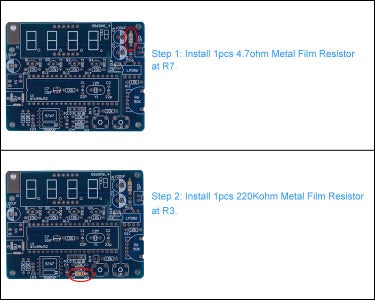

Step 1: Install 4.7ohm Metal Film Resistor & Install 220Kohm Metal Film Resistor

Installation Tips:

 1>.User needs to prepare the welding tool at first.

2>.Please be patient until the installation is complete.

3>.The package is DIY kit.It need finish install by user.

4>.The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.

5>.Pay attention to the positive and negative of the components.

6>.Strictly prohibit short circuit.

7>.User must install the LED according to the specified rules.Otherwise some LED will not light.

8>.Install complex components preferentially.

9>.Make sure all components are in right direction and right place.

10>.It is strongly recommended to read the installation manual before starting installation!!!

11>.Please wear anti-static gloves or anti-static wristbands when installing electronic components.

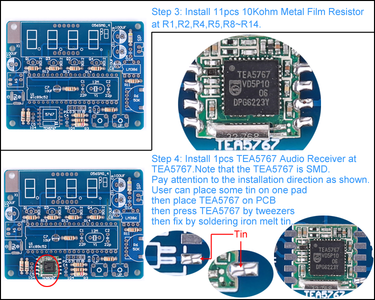

Step 2: Install 10Kohm Metal Film Resistor & Install TEA5767 Audio Receiver

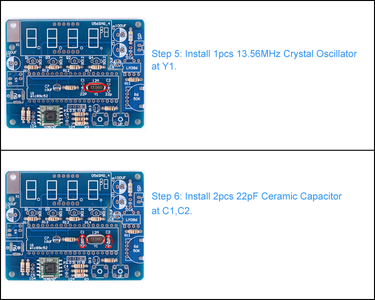

Step 3: Install 13.56MHz Crystal Oscillator & Install 22pF Ceramic Capacitor

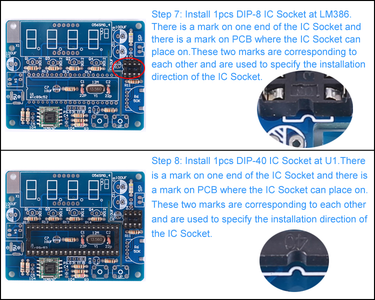

Step 4: Install DIP-8 IC Socket at LM386 & Install DIP-40 IC Socket

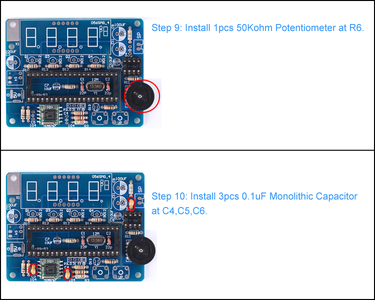

Step 5: Install 50Kohm Potentiometer & Install 0.1uF Monolithic Capacitor

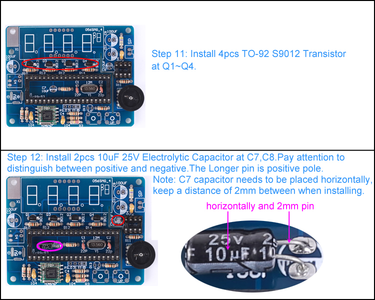

Step 6: Install TO-92 S9012 Transistor & Install 10uF 25V Electrolytic Capacitor

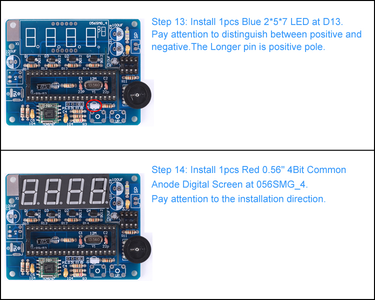

Step 7: Install Blue 2*5*7 LED & Install Red 0.56" 4Bit Common Anode Digital Screen

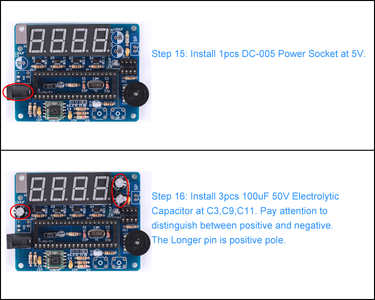

Step 8: Install DC-005 Power Socket & Install 100uF 50V Electrolytic Capacitor

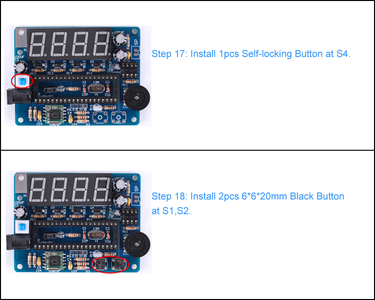

Step 9: Install Self-locking Button & Install 6*6*20mm Black Button

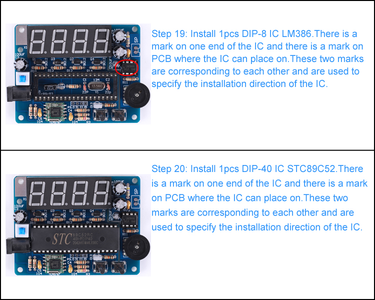

Step 10: Install DIP-8 IC LM386 & Install DIP-40 IC STC89C52

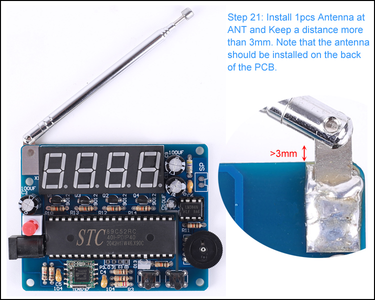

Step 11: Install 1pcs Antenna at ANT and Keep a Distance More Than 3mm

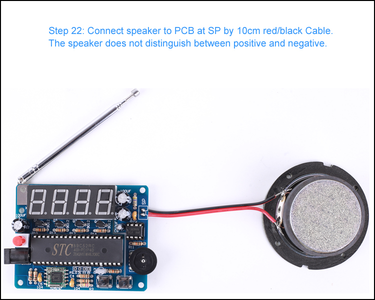

Step 12: Connect Speaker to PCB at SP by 10cm Red/black Cable

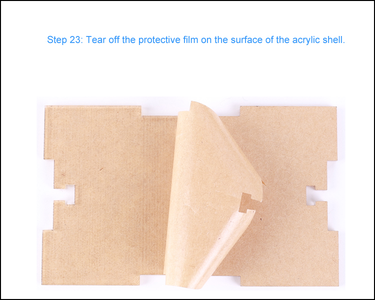

Step 13: Tear Off the Protective Film on the Surface of the Acrylic Shell

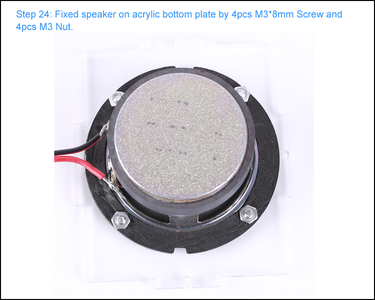

Step 14: Fixed Speaker on Acrylic Bottom Plate by 4pcs M3*8mm Screw and 4pcs M3 Nut

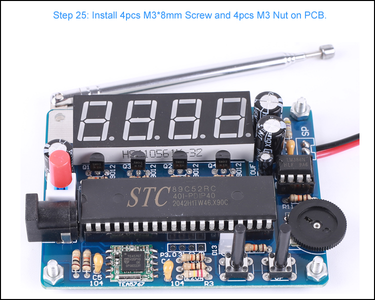

Step 15: Install 4pcs M3*8mm Screw and 4pcs M3 Nut on PCB

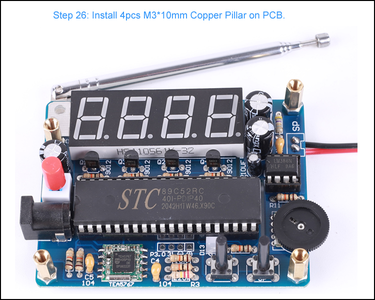

Step 16: Install 4pcs M3*10mm Copper Pillar on PCB

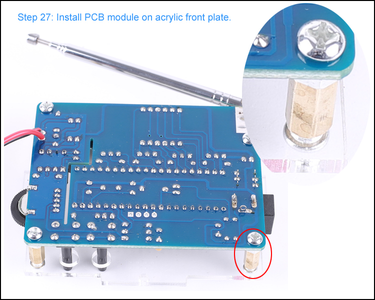

Step 17: Install PCB Module on Acrylic Front Plate

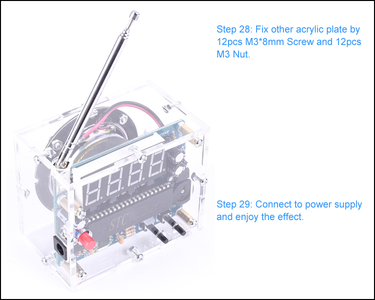

Step 18: Fix Other Acrylic Plate by 12pcs M3*8mm Screw and 12pcs M3 Nut & Connect to Power Supply and Enjoy the Effect
