Introduction: Joule Thief With 2n2222a (detailed Tutorial)

By
About: Hi, im Deniz. Im 15 years old and im from Turkey 🇹🇷. In this blog I show you step by step how to make interesting projects. I am interested in electronics, coding and 3D models. Please support me, don't forget…

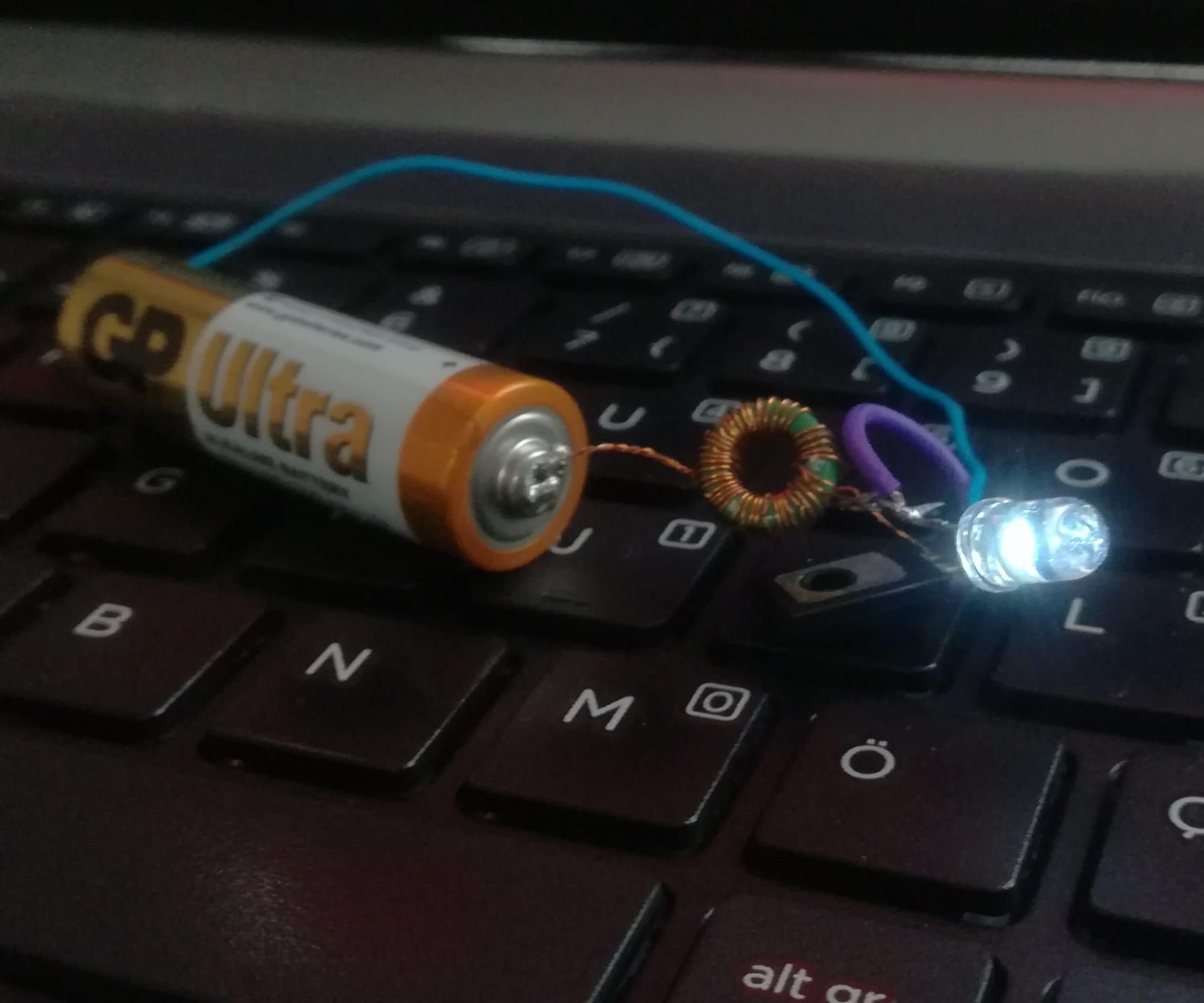

Hello friends, today we will make joule thief with only four components


Supplies

  • 1k Resistor
  • LED
  • 2N2222 Transistor
  • 10 turns wound ferrite toroid

Step 1:

We connect the (+) pole of the led to the collector pin of the transistor, and the (-) pole of the led to the emitter pin.

Step 2:

We connect our resistor to the base of the transistor.

Step 3:

We connect a single wire of the coil to the collector leg of the transistor. Then we connect the other single leg of the coil to the other leg of the resistor.

Step 4: Powering

We connect the (-) side of our power supply [1,5v] to the emitter pin of the transistor, and the (+) side of the power supply to the junction of the two coils.
