Introduction: PART3 - Drawing Random Eyes Using Ardunio_GFX_Library With 2xGC9A01 and RP2040-zero
In addition to the code shared in Part 1, I will be providing a new example.
To draw an eye shape using the Arduino_GFX_Library, follow these steps:
- Install the Ardunio_GFX_Library
- Set up the hardware, including connecting an two GC9A01and sound sensor

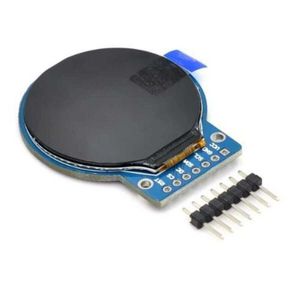

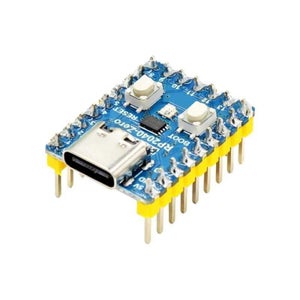

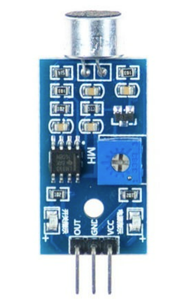

Supplies
Step 1:
Complete the connections. Install the library.
The code creates an eye drawing using given angle and color variables and includes functionality to stop the drawing when a signal is received from a sound sensor. This integration of the sound sensor with the Arduino_GFX_Library allows for interactive control, ensuring that the eye drawing pauses or stops based on auditory input.
here is my sample;
---------------
#include <Arduino_GFX_Library.h>
#include <Arduino.h>
#include "hardware/adc.h"
Arduino_DataBus *bus = new Arduino_RPiPicoSPI(8 /* DC */, 9 /* CS */, 10 /* SCK */, 11 /* MOSI */, 12 /* MISO */, spi1 /* spi */);
Arduino_GFX *gfx = new Arduino_GC9A01(bus, 28 /* RST */, 0 /* rotation */, true /* IPS */, 240 /* width */, 240 /* height */);
// İkinci ekran tanımlamaları
Arduino_DataBus *bus2 = new Arduino_RPiPicoSPI(12 /* DC */, 14 /* CS */, 10 /* SCK */, 11 /* MOSI */, 17 /* MISO */, spi1 /* spi */);
Arduino_GFX *gfx2 = new Arduino_GC9A01(bus2, 29 /* RST */, 0 /* rotation */, true /* IPS */, 240 /* width */, 240 /* height */);
/* More dev device declaration: https://github.com/moononournation/Arduino_GFX/wiki/Dev-Device-Declaration */
/*******************************************************************************
* End of Arduino_GFX setting
******************************************************************************/
int zamansay=0; //timecounter
int sespin = 26; // GPIO26ADC sound sensör pini olarak tanımla
int sesValue = 0; // Sensör değerini saklamak için değişken
int hata, adres, cihaz_sayisi; // Değişkenlerimizi tanımlıyoruz
void setup(void)
{
#ifdef DEV_DEVICE_INIT
DEV_DEVICE_INIT();
#endif
Serial.begin(115200); // Seri iletişim başlat
// Init Display
if (!gfx->begin())
{
Serial.println("gfx->begin() failed!");
}
if (!gfx2->begin())
{
Serial.println("gfx2->begin() failed!");
}
gfx->fillScreen(RGB565_WHITE);
gfx2->fillScreen(RGB565_WHITE);
//startup anim
gozciz (1,90,-1,RGB565_BLUE); //colour, display 1 or 2 ,size, eye angle
gozciz (2,90,-1,RGB565_BLUE); //sag/sol goz,boyut, konum açı,renk
gozciz (1,90,-1,RGB565_BLUE); //sag/sol goz,boyut, konum açı,renk
gozciz (2,90,-1,RGB565_BLUE); //sag/sol goz,boyut, konum açı,renk
delay(400);
gkapakciz(80); eyelid rectangular
delay(5000); // 5 seconds
gfx->fillScreen(RGB565_WHITE);
gfx2->fillScreen(RGB565_WHITE);
//stabil eyes
gozciz (1,80,-1,RGB565_BLUE); //sag/sol goz,boyut, konum açı,renk
gozciz (2,80,-1,RGB565_BLUE); //sag/sol goz,boyut, konum açı,renk
}
void loop()
{
if (zamansay > 0) { //timecounter like millis
//Serial.println(zamansay);
zamansay= zamansay - 1; countdown time
}
sesornek(); //random eyes stop with sound sensor
}
void gkapakciz(int y)
{
gfx->fillRect(0, 0, 240, y, 0x8410);
gfx2->fillRect(0, 0, 240, y, 0x8410);
}
void gozciz(int goz,int boyut, int aci, int renk){
int beyaz=100;
int kx = 120 ;
int ky = 120 ;
//mavi,siyah merkez bulma -1 sa orta
if (aci != -1){
kx = (120 + (beyaz-boyut) * cos(aci * (PI / 180.0)));
ky = 120 - (beyaz-boyut) * sin(aci * (PI / 180.0));
}
//parıltı merkezi
int x = kx + boyut * sqrt(2) / 2;
int y = ky - boyut * sqrt(2) / 2;
if (goz==1) //sol left
{
// Sol gözü çiz
gfx->fillCircle(120, 120, beyaz, RGB565_WHITE); // Gözün beyaz kısmı
gfx->fillCircle(kx, ky, boyut, renk); // Mavi iris
gfx->fillCircle(kx, ky, boyut-20, RGB565_BLACK); // Siyah pupil
gfx->fillCircle(x-30, y+30, (boyut-20)/10, RGB565_WHITE); // Beyaz parıltı
}else{ //sag right
gfx2->fillCircle(120, 120, beyaz, RGB565_WHITE); // Gözün beyaz kısmı
gfx2->fillCircle(kx, ky, boyut, renk); // Mavi iris
gfx2->fillCircle(kx, ky, boyut-20, RGB565_BLACK); // Siyah pupil
gfx2->fillCircle(x-30, y+30, (boyut-20)/10, RGB565_WHITE); // Beyaz parıltı
}
}
void sesornek() {
//sensor kontrol
sesValue = analogRead(sespin);
Serial.println(sesValue);
if (sesValue < 1000) {
gozciz (1,90,-1,RGB565_BLUE); //if angle -1 normal eyes else 0-360 degree anlges
gozciz (2,90,-1,RGB565_BLUE); //sag/sol goz,boyut, konum açı,renk
zamansay=20000; continue in 20000 loop
}
if (zamansay == 1 ){ draw random eyes since timecount
//Default display
gfx->fillScreen(RGB565_BLACK); turn the normal eyes end of timecount
gfx2->fillScreen(RGB565_BLACK);
int ranboyut = random(40, 80);
int ranaci = random(0, 360);
gozciz (1,ranboyut,ranaci,RGB565_BLUE); //Draw random size, random angle but blue! even time goes to zero
gozciz (2,ranboyut,ranaci,RGB565_BLUE); //sag/sol goz,boyut, konum açı,renk
zamansay=200000;//since 200000 loop
}
}
