Introduction: Servo-Motor Operation With FS-TH9X Flysky Remote Controller Through FS-IA10B Receiver

By
About: I am an Agricultural Engineering Scientist in Division of Agricultural Engineering, ICAR-IARI New Delhi, India

Servo-Motor operation with FS-TH9X Flysky remote controller through FS-IA10B Receiver

Dr. Rajeev Kumar, Er. Basant Singh Tomar, Dr. Sukanya Barua, ICAR-IARI New Delhi

Introduction:

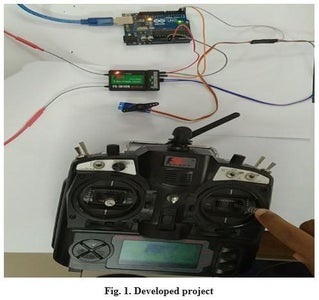

In this remote-control electronics project, Servo-Motor was operated with the help FS-TH9X Flysky remote controller radio transmitter through 10 channel FS-IA10B receiver along with Arduino–Uno microcontroller board. Components required of operating the servo motor remotely consisted of Flysky FS-TH9X remote controller radio transmitter, fly Sky FS-IA10B Radio Receiver, Arduino Uno microcontroller board, Servo-Motor, power source, jumper wire and programming code. The selected radio transmitter transmits the signal in the ranges up to 1 km. RC robot or RC Excavator etc. may be developed from selected components with the help of this project. The project is specially developed for all the Radio control models, that offers super active and passive anti-jamming capabilities, very low power consumption and high receiver sensitivity. The developed project is shown in the Fig. 1.

The project is developed in two steps; (1) Validating the receive data from FS-TH9X transmitter in the serial monitor of the Arduino IDE complier (3) operating the servo- motor using received data from FS-TH9X transmitter.

Components Required for development of this project: Following components are required to operate the servo motor:

  1. Arduino UNO microcontroller board = 01
  2. FS-TH9X remote controller radio transmitter = 01
  3. FS-IA10B radio receiver = 01
  4. Battery 5V =01
  5. Servo Motor = 01
  6. Jumper wires = as per required

Brief description of Fly Sky FS-TH9X Transmitter:

This radio transmitter uses a high gain and high quality multi directional antenna. It is associated with a high sensitivity receiver; this radio system guarantees a jamming free long range radio transmission. The transmitter works in the frequency range of 2.405 to 2.475GHz. This band has been divided into 142 independent channels, each radio system uses 16 different channels and 160 different types of hopping algorithm. The FS-i10 transmitter has a 10 channel facility and frequency 2.4GHz, AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) digital proportional computerized R/C system.

Brief description of FS-IA10B receiver:

This 10-channel receiver works for most models and is considered a “full range” so it can handle larger models as well as the smaller ones. Dual antennas give the FS-iA10B for unparalleled reception and interference rejection capability. For best results, makes sure the antennas are set at a 90-degree angle from each other.

Step 1: Validating the Received Data From Transmitter to Arduino UNO Board

Validation of received data required transmitter, receiver, Arduino-Uno microcontroller board and programming code. This receiver supports the ppm as well as I-bus protocol. Here I-bus protocol is used.

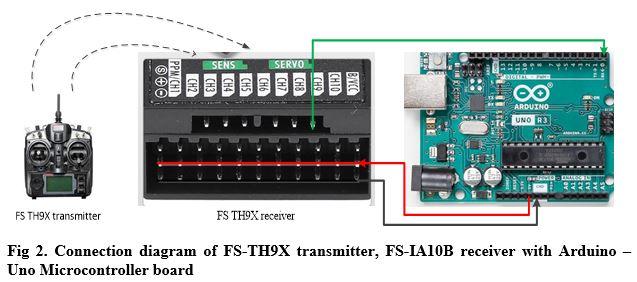

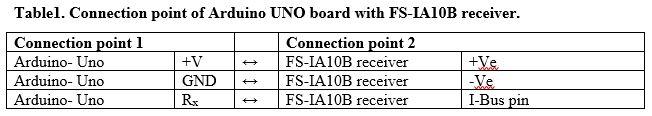

Arduino UNO board was powered from computer through USB A to USB-B. Receiver was powered by the power pin of Arduino UNO board. Rx of Arduino Uno was connected to I-Bus pin of FS-IA10B receiver which is shown in Fig. 2. Throttle, Aileron, Elevator and Rudder stick of transmitter were rotated accordingly, corresponding values are shown in serial monitor. Connection between FS-IA10B receiver to Arduino UNO board is also tabulated in the Table1.

Programming code for receiving the data from the radio transmitter to board:

Attached Programming code is uploaded on Arduino Uno microcontroller board. Programming file can be downloaded and it can be used directly for validating the received data from transmitter to the Arduino microcontroller board.

Attachments

Step 2: Operating the Servo-motor Using Received Data From FS-TH9X Transmitter

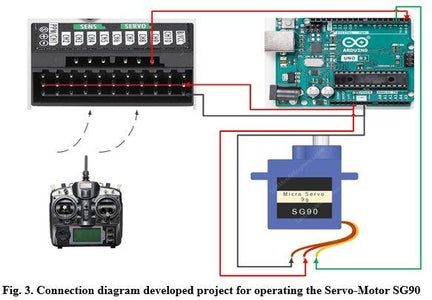

Servo motors have three wires: power, ground, and signal. The power wire is typically red, and should be connected to the 5V pin of Arduino board. The ground wire is typically black or brown and should be connected to a ground pin of Arduino board. The signal pin is typically yellow or orange and should be connected to any digital pin on the Arduino board. Connection diagram of developed tutorial is also shown in the Fig. 3.

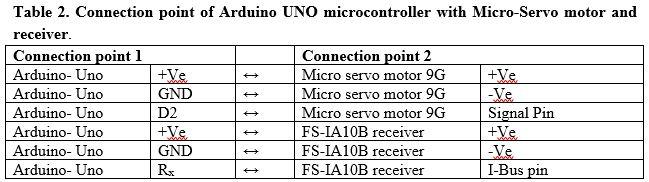

Before uploading the programming code in Arduino UNO microcontroller, Rx connection should be disconnected from board for successful uploading the code on the microcontroller. Same receiving data validation programming code was uploaded in Arduino UNO microcontroller for operating the servo motor. Connection of Arduino UNO microcontroller board to the Micro-Servo motor is tabulated in table 2.

After successful uploading the programming code in the microcontroller, connect the I-bus pin of receiver to the Rx pin of Arduino board.

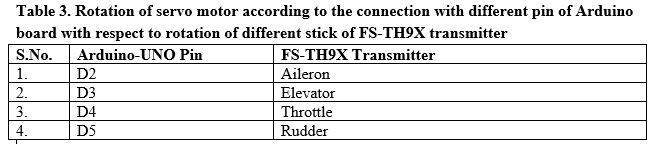

During the experiment, it can be seen with the rotation of aileron stick; servo is rotated while single wire of servo motor was connected to D2 pin of Arduino board. Similarly, with the rotation of Elevator stick; servo was rotated while single wire of servo motor is connected to D3 pin of Arduino board. Corresponding digital pin and other stick name is tabulated in the table 3. According to uploaded programming code and mode 1 setting of FS-TH9X transmitter, movement of Aileron signal was processed through D2 digital pin of Arduino board. Similarly, movement of Elevator signal was processed through D3 digital pin of Arduino board and rest of thing is shown in table 3.

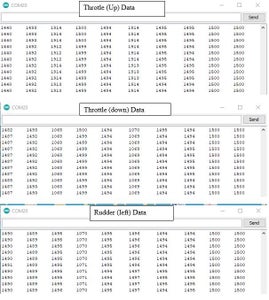

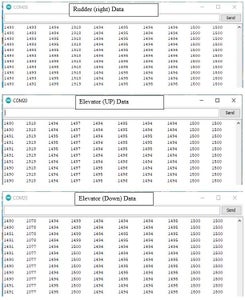

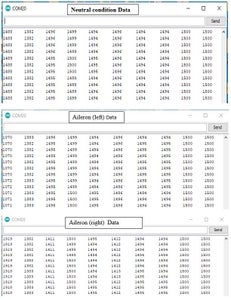

Step 3: Serial- Monitors Data During the Validation of Data Is Shown in the Fig. 5:

Serial- monitors data during the validation of data is shown in the Figure of this step
