Introduction: Simple Wireless Doorbell DIY
Hello everyone,
Here I will show you how you can make a wireless doorbell at home easily at very cheap price.
I will provide you each & everything required for this project.
In this project I use JLC-PCB for my pcb...
They provide 10 PCBs for $2 only...I think this is great....
So lets make it...
Step 1: Watch the Video
Step 2: Order Your Pcb
To order your pcbs...
1. Open JLCPCB.COM
2.Upload your gerber file
3.Select your quantity/colour & other requirements
4.Now add your shipping address & Payment method
5. Pay for your order
You are Done
Rf remote gerber-goo.gl/9WntYT
Rf receiver gerber-goo.gl/uV1vhq
Step 3: Collect the Components
Transmitter components .......
1. HT12E IC
2. 434 Mhz rf transmitter
3. 18 pin ic base optional
4. 1 megaohms resistor
5. 10k resistro
6. pushbutton or calling bell switch
7. 3.7v battery or 5v power supply
8. jumper wires
Receiver Components
1. HT12D IC
2. 434 Mhz rf receiver
3. bc 547 transistor
4. 1k resistor*2
5. 51k resistor
6. led anycolour
7. 9v battery or any 9v or 12v power supply
8. buzzer 9v or 6v or 12v
9. 18 pin ic base optional
10. jumper wires
Step 4: Follow the Circuit

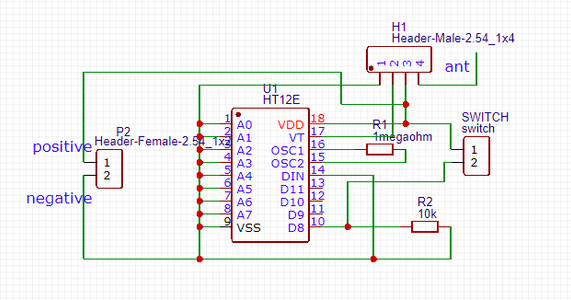

Rf transmitter circuit-goo.gl/knTrDq

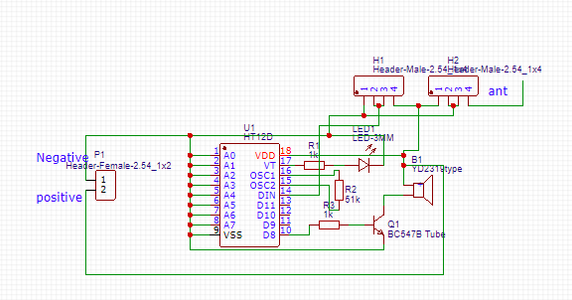

Rf receiver circuit-goo.gl/wA5LDY
Step 5: Assemble the Circuit
Now put all the components according to the circuit diagram.....
Step 6: Test the Circuit
Now before the final installation, check the circuit, is it working or not.....
Step 7: You Are Done
Now you are ready to go...
congratulations ......
