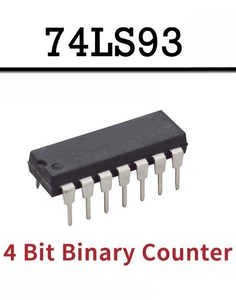

The 74LS93 is a 4-bit binary counter, which is a variant of the 7493 but specifically from the LS (Low Power Schottky) TTL family. It can be used to count pulses and as a frequency divider. Here's a step-by-step guide on how to use the 74LS93:

Supplies

The 74LS93 IC
Breadboard
Oscillator or Clock source (to provide the input pulses)
Power supply (typically +5V for LS TTL ICs)
LEDs (for visual output, optional)
Resistors (for LED current limiting, optional)
Capacitors (for decoupling, optional)
Jumper wires

Step 1: Set Up the Power

Connect pin 14 to the +5V power supply.
Connect pin 7 to the ground (0V).

Step 2: Clock Input

Connect your clock source or oscillator to pin 14. This will provide the pulses that the counter will count.

Reset Pins:

Step 3: Reset Pins

The 74LS93 has two reset pins: R1 (pin 2) and R2 (pin 3). To ensure the counter starts from zero, momentarily connect these pins to the +5V. These pins should be grounded in regular operation to allow the counter to count. If you want to reset the counter at any point, apply a high signal to both reset pins.

Step 4: Set Up Output

For visual representation, connect LEDs to the output pins Q_A (pin 12), Q_B (pin 9), Q_C (pin 8), and Q_D (pin 11). Remember to use resistors in series with LEDs to limit the current.

Step 5: Operating Modes

By default, when you provide clock pulses and with the reset pins grounded, the IC will start counting the pulses in a binary sequence from 0000 to 1111 (0 to 15 in decimal).

If you're using the counter as a frequency divider, you can take the output from one of the Q outputs to get a divided frequency.

Step 6: Observe the Counting

With every pulse from your clock source, the LEDs (or your outputs) will change in a binary sequence, indicating the count. For instance, after five pulses, Q_A, Q_B, Q_C, and Q_D will represent the binary for 5, i.e., 0101.

Step 7: Resetting

To reset the counter back to zero, apply a high signal to both reset pins (R1 and R2).

Step 8: Safety Decoupling

For stable operation, it's a good practice to connect a small capacitor (like 0.1µF) between the power supply (+5V) and ground, close to the IC. This acts as a decoupling capacitor and prevents potential high-frequency noise on the power line.

Step 9: Experiment

Play around by changing the frequency of the clock source, or using the counter as a frequency divider, to familiarize yourself with its operations.

Step 10: Switch Off

Once done, ensure you disconnect the power supply to the circuit.
