Introduction: Styling a Mugi Coroplast RC Plane
This instructable will show you how to use colored packing tape to style a coroplast RC plane. Coroplast is a twinwall polypropylene fluted plastic kind of like corrugated cardboard except made of plastic.
This was my first Mugi style attempt and it took me about five hours including the time to photograph, expect a 10 hour commitment over a few days though. I've since added tape to the bottom of the model to make it easier to see in the air. The coroplast I used is translucent so LEDs can be added for night flying. It is possible to find all colors of coroplast but watch out for the thickness, get it too thick and it will be heavier and will require a larger model. I used 2mm coroplast I bought from the Mugi people.
If you are interested in Mugi planes check out mugi.co.uk, they are super helpful and cool to deal with. There is also a strong community of friendly people willing to help out with questions you might have. Search for them on Yahoo groups.
This is my first RC plane and although it is hard to fly it's darn near indestructible. I bit it hard from 300 feet and the Mugi stuck nose down in the dirt. It was ready to fly again as soon as I pulled it out of the ground! My first time out I crashed it so many times my motor shaft bent but the plane was fine. Get lots of extra props, they seem to break easily.
Step 1: Create a Design
Using your favorite graphics program create a design. Make sure the color pallet you use matches the tape colors you are able to find. I ordered my tape online from FastPack and got a roll each of red, orange, yellow, green, blue, purple, black, and white for about 20 bucks. Make sure you are using packing tape as other tapes are thicker and add weight to your plane model. Make sure you are not using duct tape! It is not suitable for coloring a Mugi.
Step 2: Light Your Work Area
Properly light your work area. This means a LOT of light, especially if you are a night owl like me.
Step 3: Supplies
Make sure you have all of the supplies you need to style your plane.

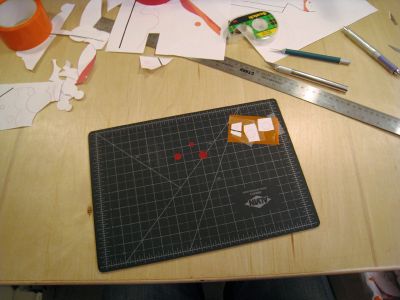

Keep fresh blades around. Also I cannot stress enough the importance of a proper cutting board
Step 4: Cutting Packing Tape
Packing tape can be temperamental stuff.

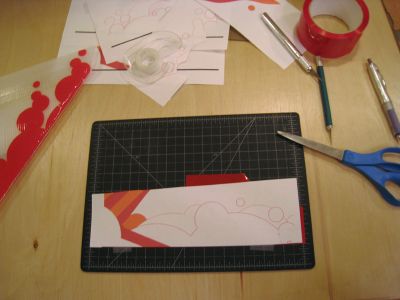

Rotate board as you cut to match your most comfortable position
Step 5: Peeling Cut Tape

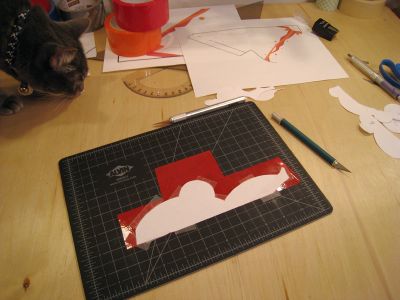

Be gentle when peeling up packing tape, it likes to split
Step 6: Placing Pieces
Use a steady hand and don't be afraid to peel up sections that are not placed on the plane correctly the first time. Be sure to use a dull blade to peel anything off the coroplast so you don't cut the plastic by accident
Step 7: Save Your Cut Template Pieces

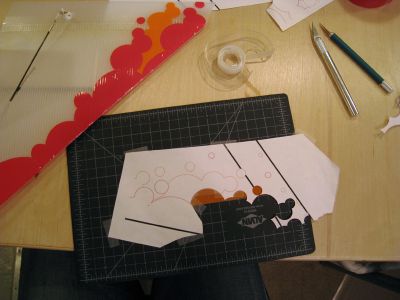

We'll use these left over pieces as guides for cutting the patterns for the other wing (if your design is symmetrical)
Step 8: Print Your Templates
Set up your design document to match the size of your model. This Mugi is 80cm (about 32 inches) from wingtip to wingtip. Matching the document size to your model size makes it really easy to crop out sections and print them. The prints should match the size of the model so you can cut on the print lines and have the edges all match up. The model is not flat though so your tape cutouts won't line up exactly. There will be small gaps and overlaps of the tape and that's ok.
Step 9: Cutting and Applying the Tape - Step 01
Template, Tape, Cut, Peel, Apply
Step 10: Cutting and Applying the Tape - Step 02
Template, Tape, Cut, Peel, Apply
Step 11: Cutting and Applying the Tape - Step 03
Template, Tape, Cut, Peel, Apply
Step 12: Cutting and Applying the Tape - Step 04
Template, Tape, Cut, Peel, Apply
Step 13: Cutting and Applying the Tape - Step 05
Template, Tape, Cut, Peel, Apply
Step 14: Cutting and Applying the Tape - Step 06
Template, Tape, Cut, Peel, Apply
Step 15: Cutting and Applying the Tape - Step 07
Template, Tape, Cut, Peel, Apply
Step 16: Cutting and Applying the Tape - Step 08
Template, Tape, Cut, Peel, Apply
Step 17: Cutting and Applying the Tape - Step 09
Template, Tape, Cut, Peel, Apply
Step 18: Cutting and Applying the Tape - Step 10
Template, Tape, Cut, Peel, Apply
Step 19: Cutting and Applying the Tape - Step 11
Template, Tape, Cut, Peel, Apply
Step 20: Cutting and Applying the Tape - Step 12
Template, Tape, Cut, Peel, Apply
Step 21: Cutting and Applying the Tape - Step 13
Template, Tape, Cut, Peel, Apply
Step 22: Cutting and Applying the Tape - Step 14
Template, Tape, Cut, Peel, Apply
Step 23: Cutting and Applying the Tape - Step 15
Template, Tape, Cut, Peel, Apply
Step 24: Cutting and Applying the Tape - Step 16
Template, Tape, Cut, Peel, Apply
Step 25: Cutting and Applying the Tape - Step 17
Template, Tape, Cut, Peel, Apply
Step 26: Cutting and Applying the Tape - Step 18
Template, Tape, Cut, Peel, Apply
Step 27: Cutting and Applying the Tape - Step 19
Template, Tape, Cut, Peel, Apply
Step 28: Cutting the Hatch
Cut the hatch for access to the battery and electronics
Step 29: Coloring the Fins
By now this should be easy
Step 30: First Time Out
This is me launching my Mugi for the first time at Apollo field in the SF Vally, CA. I had a friend on the controls to take it up then pass the transmitter to me so I could learn how it moves in the air. This did not stop me from mashing it into the ground for the entire first day. I love how resilient this plane is, any other material and it would have been dust.
