Introduction: Temperature Monitor Using NeoPixel Shield for Arduino & DHT11

By Visuino
About: Arduino fan!

In this tutorial you will see how to make a Temperature Monitor using the NeoPixel Shield for Arduino - 40 RGB LED Pixel Matrix & DHT11 sensor.

Watch the Video!

Step 1: What You Will Need

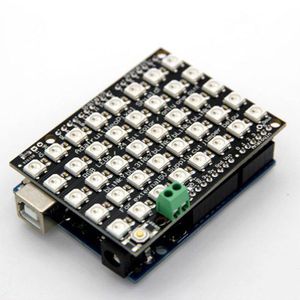

  • NeoPixel Shield for Arduino - 40 RGB LED Pixel Matrix
  • Arduino UNO
  • DHT11 Temperature & Humidity sensor
  • Visuino software: Download here


Step 2: Brought by PCBWay

Thank you PCBWay for supporting this tutorial and helping users learn more about electronics.

What I like about the PCBWay is that you can get 10 boards for approximately $5 which is really cost effective for professional made boards, not to mention how much time you save!

Go check them out here. They also offer a lot of other stuff in case you might need it like assembly, 3D printing, CNC machining and a lot more.

Step 3: The Circuit

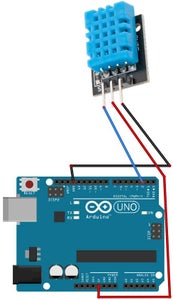

  • Connect DHT11 sensor pin[S] to Arduino digital pin[2]
  • Connect DHT11 sensor pin[-] to Arduino ground pin[GND]
  • Connect DHT11 sensor pin[+] to Arduino positive pin[5V]
  • Attach the Shield to Arduino Uno, You can find More Info here

Step 4: Start Visuino, and Select the Arduino UNO Board Type

The Visuino: https://www.visuino.eu also needs to be installed. Download Free version or register for a Free Trial.

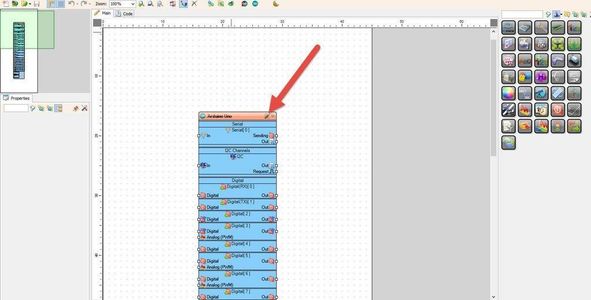

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

Step 5: In Visuino Add Components

  • Add "DHT11" component
  • Add "Analog Multi Source" component
  • Add "NeoPixels" component

Step 6: In Visuino Set Components

  • Select "AnalogMultiSource1" and in the properties window set "Output Pins" to 3

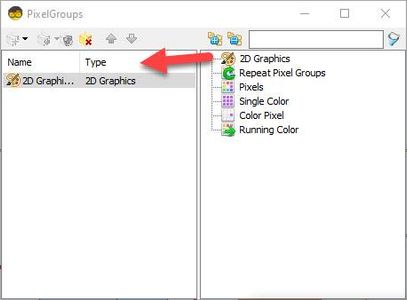

  • Double click on "NeoPixels1" and in the "PixelGroups" window drag "2D Graphics" to the Left side and in the properties window set "Height" to 5 and "Width" to 8, Select "Elements" and click on the 3 dots button

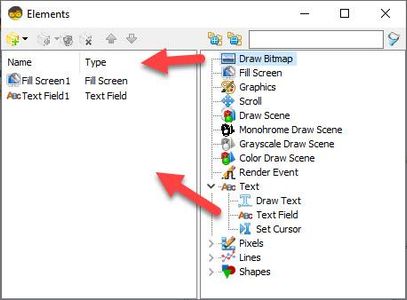

In the "Elements" window:

  • Drag "Fill Screen" to the Left side

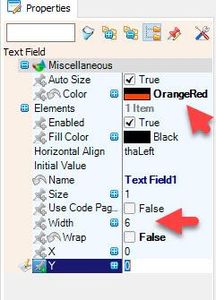

  • Drag "Text Field" to the Left side & in the properties window set "Color" to OrangeRed and "Width" to 6, "Wrap" to False, Select "Elements" and click on the 3 dots button

In the "Elements" window:

  • Drag "Font" to the Left side & in the properties window set "Font" to Adafruit\Picopixel

Close all the windows


Step 7: In Visuino Connect Components

  • Connect "HumidityThermometer1" pin[Sensor] to Arduino digital pin[2]
  • Connect "HumidityThermometer1" pin[Temperature] to "AnalogMultiSource1" pin[In]
  • Connect "AnalogMultiSource1" pin[0] to "NeoPixels1" > "Fill Screen1" pin[Clock]
  • Connect "AnalogMultiSource1" pin[1] to "NeoPixels1" > "Text Field1" pin[In]
  • Connect "AnalogMultiSource1" pin[2] to "NeoPixels1" > "Text Field1" pin[Clock]
  • Connect "NeoPixels1" pin[Sensor] to Arduino digital pin[6]

Step 8: Generate, Compile, and Upload the Code

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Step 9: Play

If you power the Arduino module the LED Pixel Matrix Pixels will start to Display the temperature from a DHT11 sensor.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it and open it in Visuino: https://www.visuino.eu
