Time Bomb LED Clock Using Old Intel Pentium II Processor

Another Covid-19 lock down creation. This time is Time Bomb clock. All of us have seen comic time bombs in various Hollywood and Bollywood hindi movies. I have a Intel Pentium-II processor in my junk box along with old hard disks. During this lock down time I decided to make something of it. Suddenly an idea came and with a LED clock kit made this Time Bomb Clock.

Step 1: Prepare the Base for the Processor

I took the old hard disk and removed its platters, servo motor, actuator arm, other electronics and PCB. The remaining aluminum part was a bit large so I cut it in two.

Step 2: Paint It Black

After cutting the hard disk base in required size, painted it black after grinding its sharp edges. Also tighten 2 screwed so that the processor can be mounted on it.

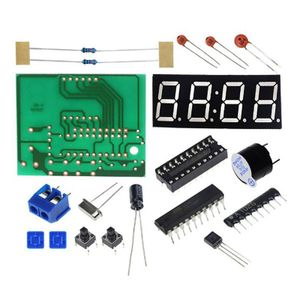

Step 3: Prepare the Clock

The assembled LED clock kit was laying around from an year. I just ditched its LED display, extended its data wires and painted them black to match the theme.

Step 4: Assemble the Time Bomb Clock

Attached the LED display on front fact of the Pentium-II processor and guided its data wires to back. The clock circuit PCB is fixed to back of processor with double sided tape.

Step 5: Power Failure Backup
