Introduction: Tiva C Projects: Interfacing LCD With Tiva C

By LinkedIn Porfile
About: Embedded Systems

How to interface an LCD with Tiva C

Let`s do it

Step 1: Watch the Video

Step 2: Hardware Components

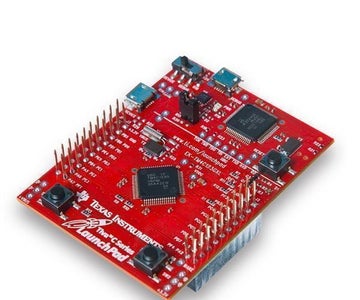

  • Tiva C LaunchPad (TM4C123)

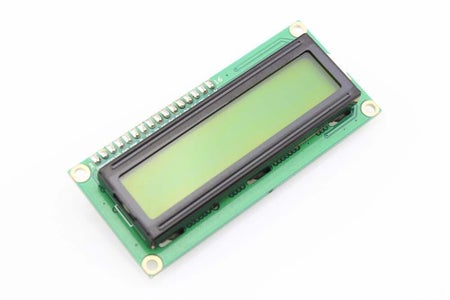

  • 16x2 LCD Display
  • 1x1K Potentiometer
  • 5v Power Supply
  • Jumpers
  • Breadboard

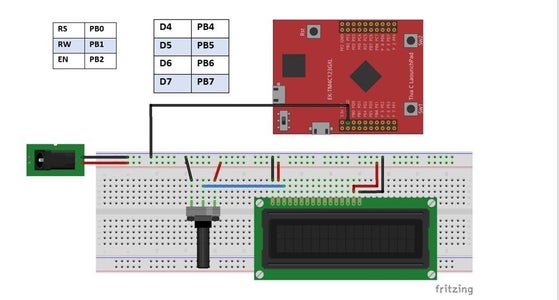

Step 3: Schematic of the Circuit

Step 4: Let`s Write the Code

GitHub Link: https://github.com/eslamgamal97/Tiva-C-Projects-TM...

Attachments

Step 5: Notes

  • volatile keyword should be included in your code with variable value can be changed any time such as the counter of for loop
  • 5v Power supply is important for LCD display (without it, your LCD does not work correctly)
  • Adjust the potentiometer if LCD does not display any data.
