Introduction: Ventilated Allsky Camera by ChrisE
Allsky Meteorite Camera - Inspired by the Thomas Jacquin concept
This updated version is result of 1 year experience in all four seasons - combining USB Heating & Adjustable Ventilation to manage a diverse range of possible climates.
Resistant to Dew, Ice, Fog & Humidity maintaining crystal clear vision all year long.
Check out my Allsky Camera Family on Printables.com
Supplies
BIll of Material
Download the 3D Models from the Printables Store
PI HQ Camera:
ZWO Camera:
Non Printed Electronics & Bought Material (European Links)
RaspberryPi 4B w/ 4GB - Buyzero Pi Zero Shop
RaspberryPi HQ Camera - Buyzero Pi Zero Shop
3/5V Aux PC Fan - Amazon
USB-C 90deg Adaptor - Amazon
100ohm Ceramic Resistors *Qty4) - Amazon
Jumper Wires w/ Breadboard Connector - Amazon
PowerOverEthernet (POE+) Splitter - Amazon
PowerOverEthernet (POE+) Injector - Amazon
Outdoor Cat5 Junction - Amazon
CS-Mount Lens - 2.5/2.8mm for 150-170deg FOV - AliExpress
Polylite PETG Grey - Amazon
Qty5 M3 Inserts - Amazon
JMX 3.5" Acrylic Dome - Amazon / Amazon NA
M3 screws (Qty 5, Stainless Steal) - Amazon
M2.5 screw & nuts (Qty 2, Fan Assy)
M2 screws (Qty 4, Pi/Camera Assy)
Cable Ties
Old USB Cable (cut)

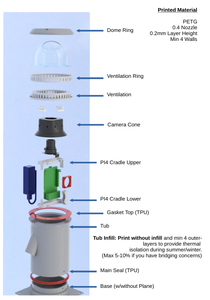

Step 1: Exploded Assembly - Printed Parts
Printed Parts Assembly
Step 2: Pi Cradle Assembly

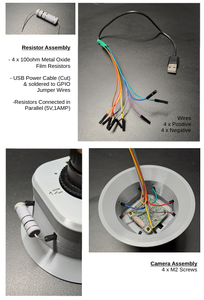

Step 3: Dew Heater / Resistor Assembly

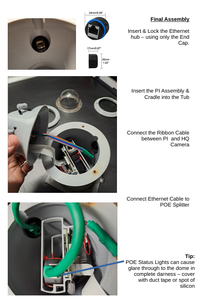

Step 4: POE / Network Connection
Step 5: Final Assembly
Step 6: Install
Step 7: Sample
