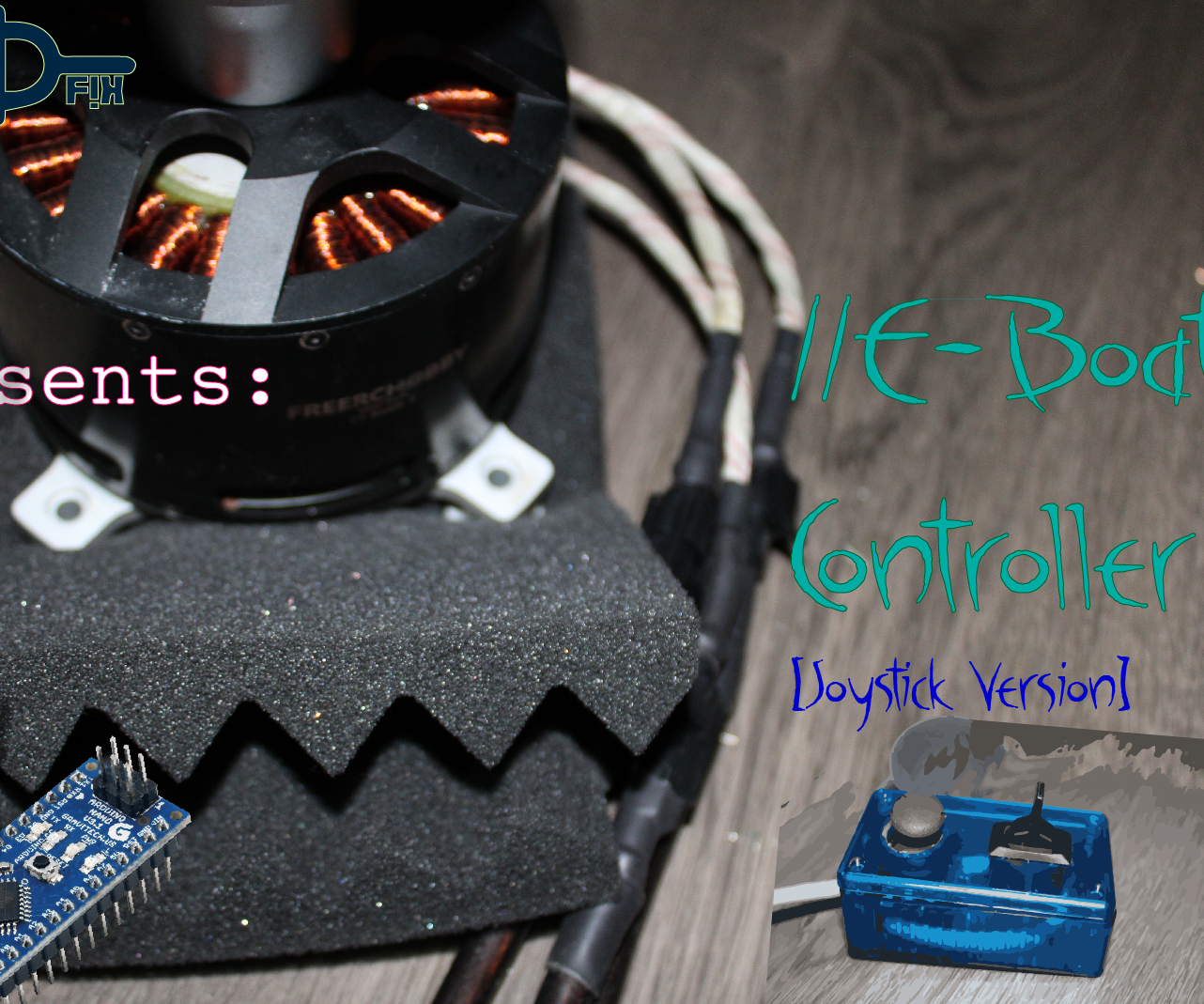

Arduino NANO Simple E-boat Controller (Forward, Neutral, Reverse) Fixed Speed

Simple controller for Brushless Motor with ESC and Arduino for docking a Sail Boat.

Switch to control Forward/Neutral/Reverse

Switch to control the throttle by 3 positions.

Ignition Key Switch to turn on the controller.

Supplies

Arduino Nano x1

1P2T Paddle switch F/N/R x1

1P2T Paddle switch simple x1

1KOhm Resistor x4

ESC Acording to the motor size that you will use.

Brushless Motor

Ignition Key Switch

WaterProof or Regular Connectors

Heat Shrink Tubing

Controller Box

48V Li-ion Battery

5VDC Regulator (48VDC to 5VDC)

Wires ESC to Motor

Wires ESC to Battery

Step 1: The Code

#include <Servo.h>

Servo myservo;

int switch1 = 6;

int switch2 = 4;

int switch3 = 9;

int switch4 = 8;

int speed1 = 1400;

int speed2 = 1370;

int speed3 = 1300;

int speed4 = 1600;

int speed5 = 1680;

int speed6 = 1800;

int stop = 1500;

float potVal;

float MaxDialVal;

float pwmVal;

float MaxpwmVal;

int nIts = 20;

int LowVolt = 227 + 180;

int HiVolt = 929 - 180;

void setup() {

myservo.attach(3);

pinMode(switch1, INPUT_PULLUP);

pinMode(switch2, INPUT_PULLUP);

pinMode(switch3, INPUT_PULLUP);

pinMode(switch4, INPUT_PULLUP);

Serial.begin(9600);

myservo.writeMicroseconds(1500); // send "stop" signal to ESC. Also necessary to arm the ESC.

}

void loop() {

int switch1value = digitalRead(switch1);

int switch2value = digitalRead(switch2);

int switch3value = digitalRead(switch3);

int switch4value = digitalRead(switch4);

if (switch1value == LOW && switch2value == LOW) {

myservo.write(stop);

Serial.println("Current Speed: Neutral");

}

else if (switch1value == LOW && switch2value == HIGH) {

if (switch3value == LOW && switch4value == HIGH) {

//

for (int i = 0; i < nIts; i++) {

    potVal = potVal;

}

potVal = potVal / nIts;

pwmVal = map(potVal, LowVolt, HiVolt, 1100, 2000); // maps potentiometer values to PWM value.

    MaxpwmVal = 1500 + (500 * (MaxDialVal / 1058));

//

myservo.writeMicroseconds(speed1);

Serial.println("Current Speed: Reverse 1");

}

else if (switch3value == LOW && switch4value == LOW) {

myservo.writeMicroseconds(speed2);

Serial.println("Current Speed: Reverse 2");

}

else if (switch3value == HIGH && switch4value == LOW) {

myservo.writeMicroseconds(speed3);

Serial.println("Current Speed: Reverse 3");

}

}

else if (switch1value == HIGH && switch2value == LOW) {

if (switch3value == LOW && switch4value == HIGH) {

myservo.writeMicroseconds(speed4);

Serial.println("Current Speed: Forward 1");

}

else if (switch3value == LOW && switch4value == LOW) {

myservo.writeMicroseconds(speed5);

Serial.println("Current Speed: Forward 2");

}

else if (switch3value == HIGH && switch4value == LOW) {

myservo.writeMicroseconds(speed6);

Serial.println("Current Speed: Forward 3");

}

}

}

Step 2: The Wiring

Check Joystick version for further info, the only difference is that the port A0 for the joystick will be replaced by inputs from a switch on D8 and D9.

Joystick version HERE

Step 3: The BOX

//Crafting/////Loading////////......

Step 4: Test It
