Introduction: How to Select and Use Li-Ion Battery Charging ICs for Your Electronics Projects

By t.co/W2Z5VnFQHv

In this guide, we'll explore the key factors involved in choosing and using Li-Ion battery charging integrated circuits (ICs) for your electronics projects. Whether you're designing a smartphone, wearable device, or any gadget relying on rechargeable batteries, selecting the right charging IC is crucial for performance and reliability.

Supplies

Li-Ion Battery Charging ICs (e.g., TP4056, TP4057, TP5100, TP5000, MCP73831, LTC4054, MAX1898, MAX1555, BQ24074, MAX8903)

Components as per specific IC datasheet (e.g., resistors, capacitors)

Soldering equipment

Power source (e.g., USB charger, DC adapter)

Basic electronic components for circuit assembly

Step 1: Understand Key Considerations

Li-Ion battery charging ICs are essential for managing safe and efficient charging processes. Consider the following when selecting an IC:

  • Maximum Charge Current: Ensure the IC supports the desired charge current without damaging the battery.
  • Voltage and Current Regulation: Look for precise regulation to prevent overcharging and ensure battery safety.
  • Temperature Monitoring: Integrated temperature sensors prevent overheating during charging.
  • Safety Features: Check for built-in protection against overvoltage, overcurrent, and thermal issues.
  • Efficiency: Choose ICs with high efficiency to minimize power loss and extend battery life.
  • Compatibility: Match the IC's specifications with your battery chemistry and voltage requirements.
  • Charge Termination Voltage: Select an IC variant that suits your specific battery's full charge termination voltage.

Step 2: Choose Between ICs With or Without Power Path Control

With Power Path Control: Suitable for devices needing uninterrupted operation during charging.

Without Power Path Control: Cost-effective for applications where uninterrupted operation isn't critical.

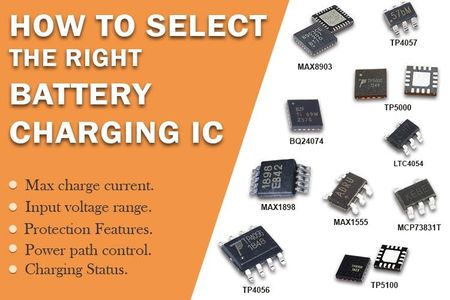

Step 3: Explore Popular Li-Ion Battery Charging ICs

Let's delve into some widely used Li-Ion battery charging ICs:

  • TP4056: Simple and cost-effective; supports single-cell Li-Ion/Polymer batteries with up to 1A charging current.
  • TP4057: Similar to TP4056 but limited to 500mA charging current.
  • TP5100: Versatile IC supporting single/multi-cell batteries with programmable charging parameters.
  • TP5000: High-efficiency IC with adjustable charging parameters and thermal regulation.
  • MCP73831: Compact IC with low external component count; ideal for space-constrained applications.
  • LTC4054: Features precision voltage regulation and programmable charge current.
  • MAX1898: Multi-chemistry charger with wide input voltage range and exceptional voltage accuracy.
  • MAX1555: Compact IC with integrated safety features for small-sized batteries.
  • BQ24074: Versatile IC supporting USB OTG functionality and up to 1.5A charging current.
  • MAX8903: Dual-input charger with high-speed switching and smart power control.

Step 4: Circuit Implementation

Refer to the datasheet and application notes for your chosen IC. Design a circuit layout considering:

  • Input Voltage and Current Limits: Ensure compatibility with your power source.
  • External Components: Follow recommendations for resistors, capacitors, and other peripherals.
  • Safety Features Implementation: Integrate overcharge, overcurrent, and thermal protection mechanisms.

Step 5:

Choosing the right Li-Ion battery charging IC is crucial for efficient and safe operation of your electronic devices. Consider your project's requirements, battery specifications, and charging needs when selecting an IC. Implement the IC into your circuit with attention to safety features and component specifications to ensure reliable performance and longevity of your battery-powered gadgets.
