Introduction: Tiva C Projects: Control External LED by Push Button on PORTB
How to control external LED by push button on PORTB.
Let`s do it
Step 1: Watch the Video
Step 2: Hardware Components

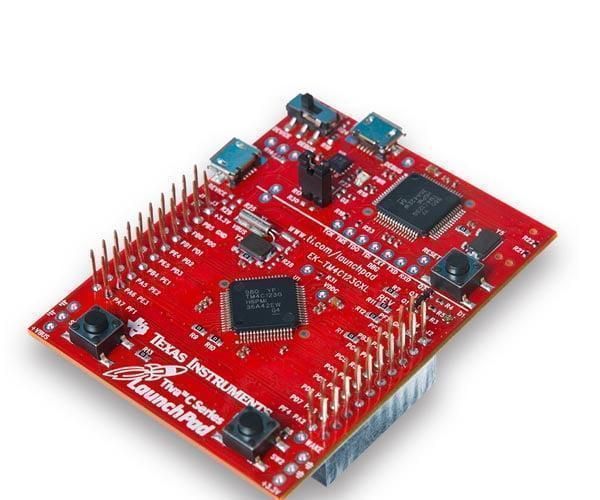

- Tiva C board (TM4C123)
- Breadboard
- LED
- 330 Ohms Resistor
- Push button
- Jumpers
Step 3: Schematic of the Circuit
- Connect 330Ohms resistor with PB2
- Connect the other pin of 330Ohms resistor to positive pin of LED
- Connect the negative pin of LED with GND on Tiva C Board
- Connect the first terminal of push button with PB3
- Connect the other terminal of push button with ground
Step 4: Let`s Write the Code
Look at the code on GitHub: Link
