Introduction: Yet Another Parametric Projectbox Generator

This post describes how to use my YAPP-generator to design Project Boxes for your PCB's.

Here you find more information on the YAPP generator

Supplies

  • openSCAD - A recent version of “openSCAD” can be downloaded here.
  • the YAPP generator - You can download this as a “.zip” file from github. Extract the “YAPP_Box-main.zip” file into your openSCAD projects folder. You now have a new folder “YAPP_Box-main” containing several sample files. In “YAPP_Box-main” there is also a folder “library” that contains the YAPP generator (so don’t throw it away!). It is wise to leave the folder structure as it is and save new box designs in this “YAPP_Box-main” folder.

Step 1: Measure the PCB

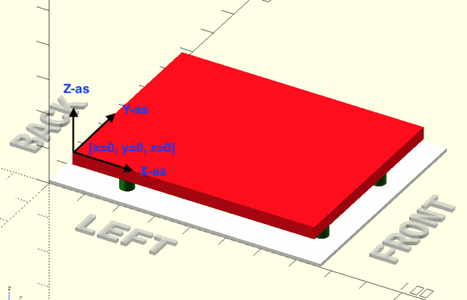

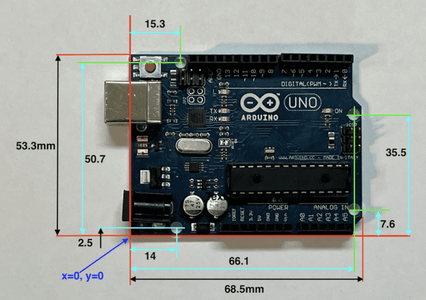

The YAPP generator's point of departure always is the PCB (size and thickness). Everything is relative to the origin of the [0,0,0]. Besides the outer dimensions of the PCB all positions of connectors, leds etc. has to be measured relative to the [0,0,0] coördinates of the PCB.

Step 2: Fill Cutouts Arrays for All Planes

For every plane (side) of the Project Box there is an array in witch you can insert the properties of every cutout in that plane. There are array's for the base, lid, front, back left and right plane.

Leave the plane array where you don't want cutouts empty.

Step 3: Enter Cutouts in the Lid

Step 4: Enter Cutouts in the Base

Step 5: Enter Cutouts in the Left Plane

Step 6: Enter Cutouts in the Right Plane

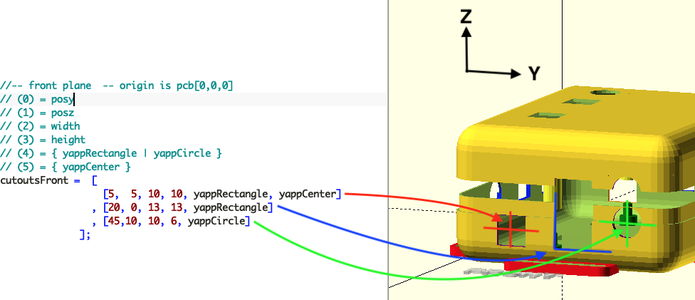

Step 7: Enter Cutouts in the Front Plane

Step 8: Enter Cutouts in the Back Plane

Step 9: Other Arrays

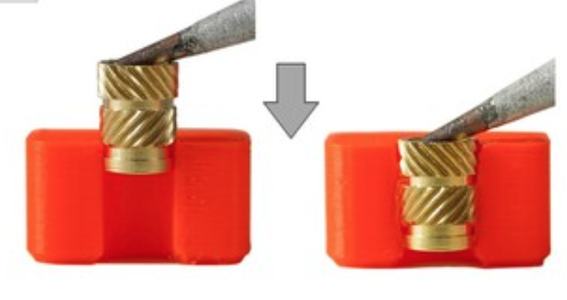

Besides the cutout-array's there are array's for specific functions such as for standoffs and for connecting the Base with the Lid.

Step 10: Generating the Project Box

The last step is to generate the Project Box. Press [F5] or [F6] to see the result of your work.

If your satisfied with your work generate the STL file, slice it and send it to your 3D printer!
